Electrical Loom

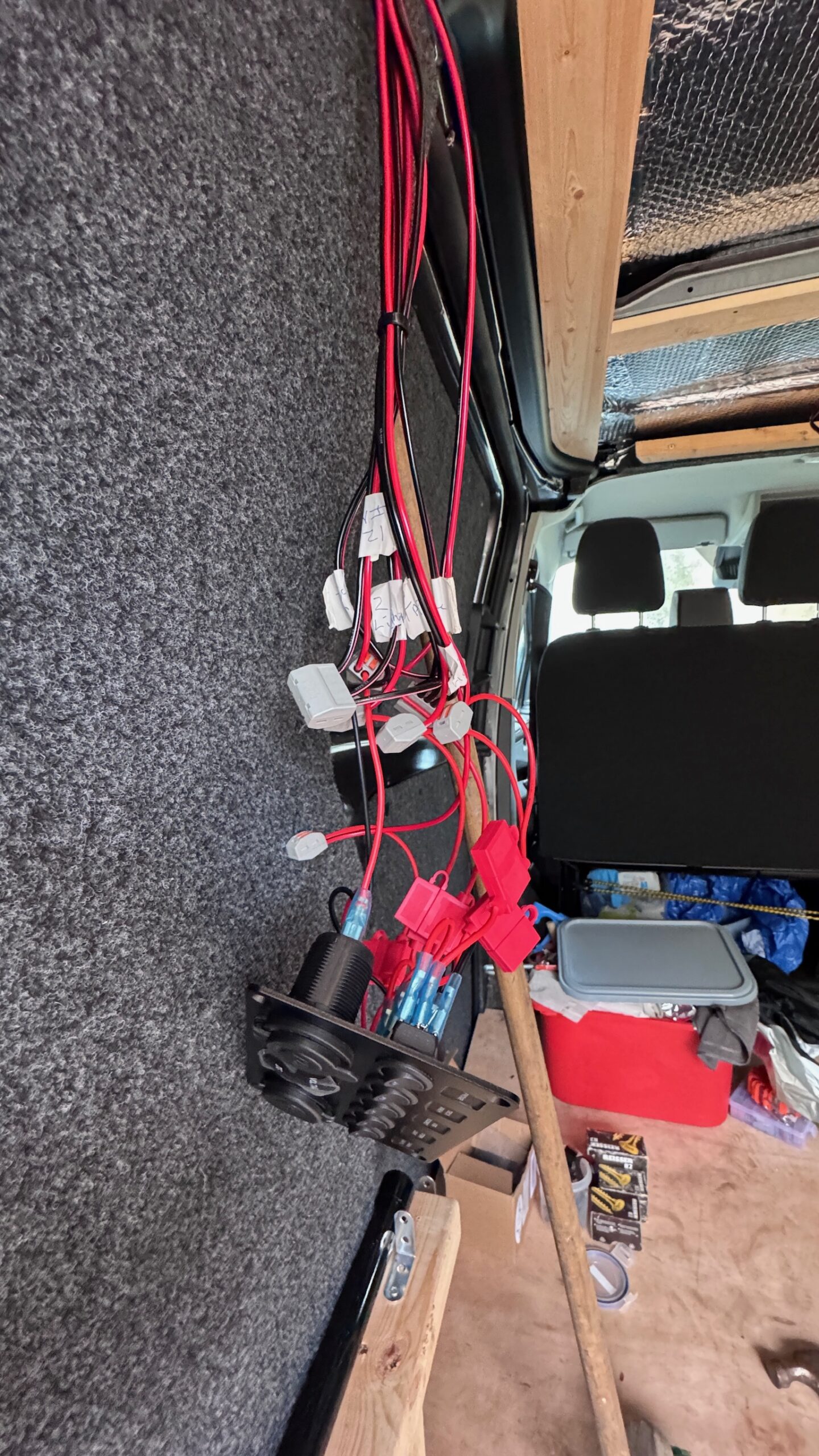

Planning the electrical loom has to start early as many later jobs rely on having this in place early.

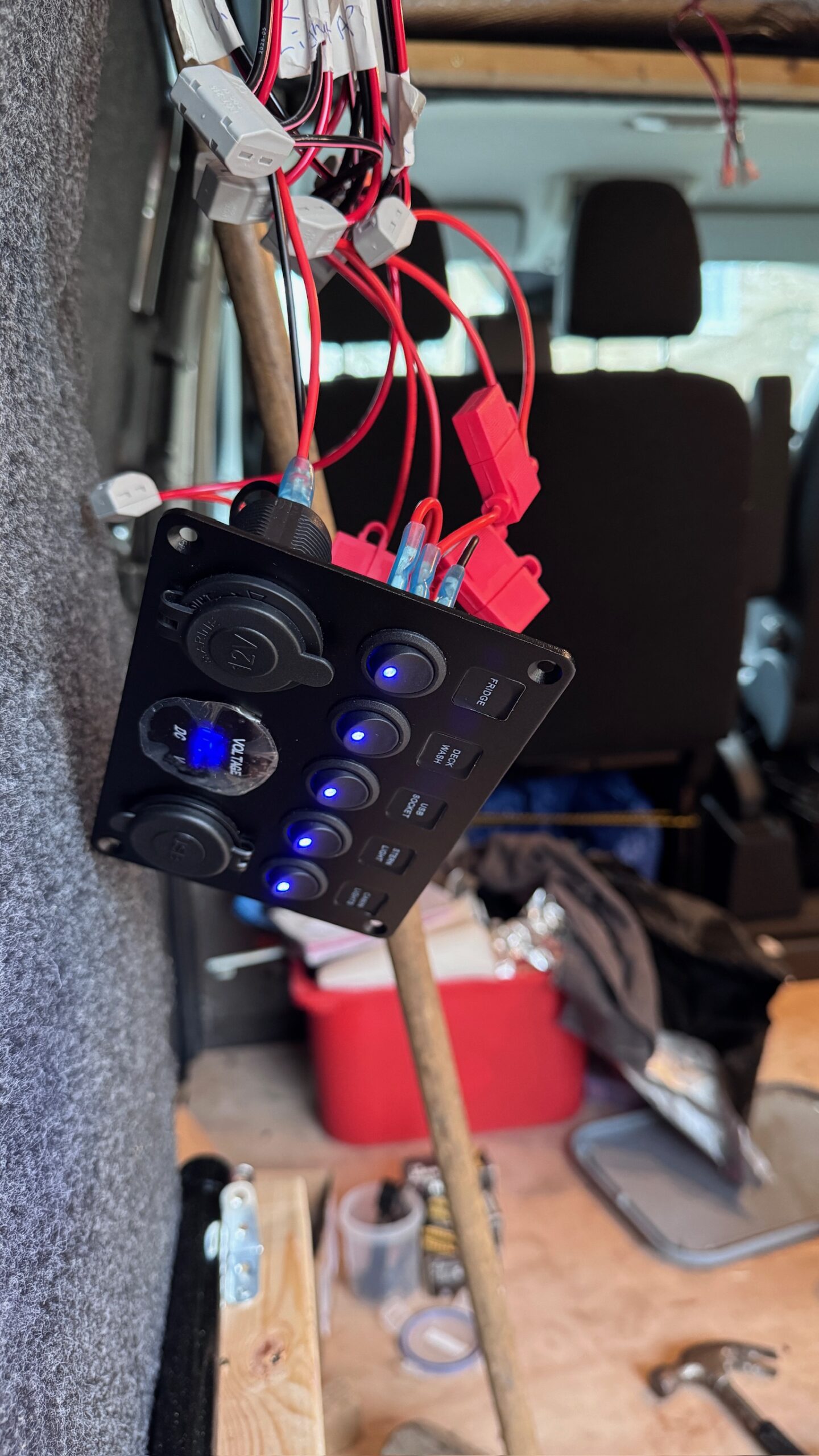

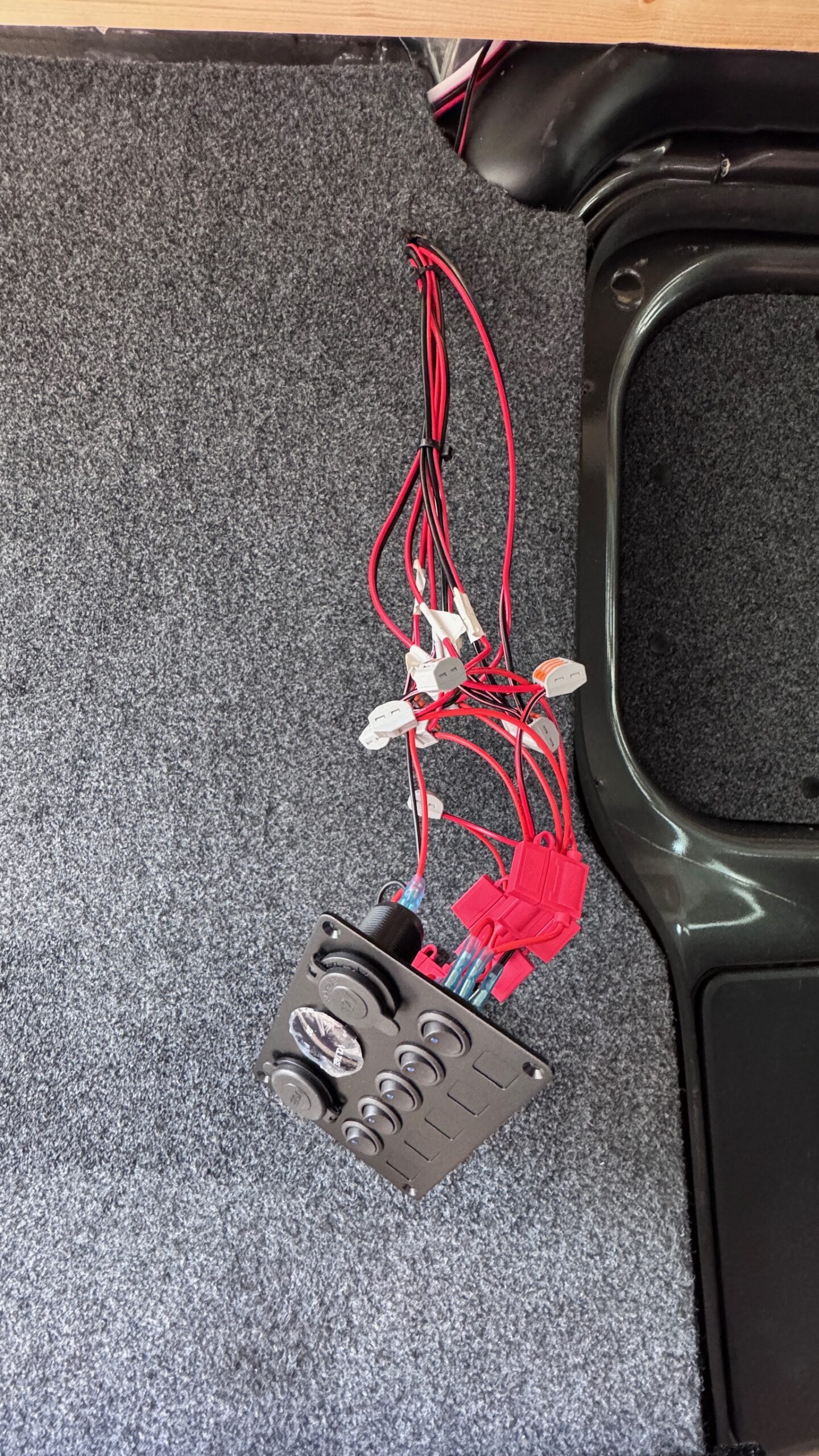

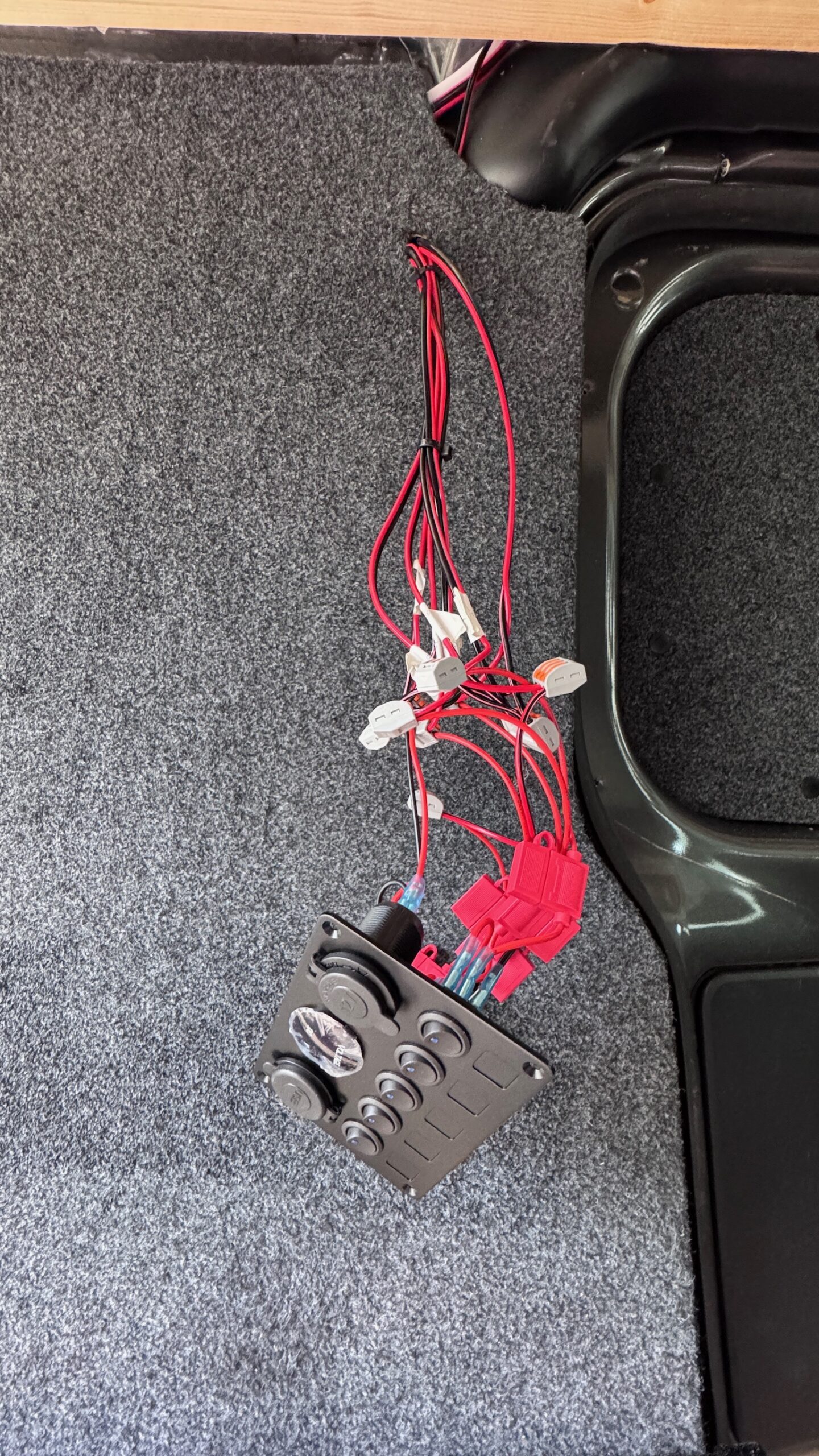

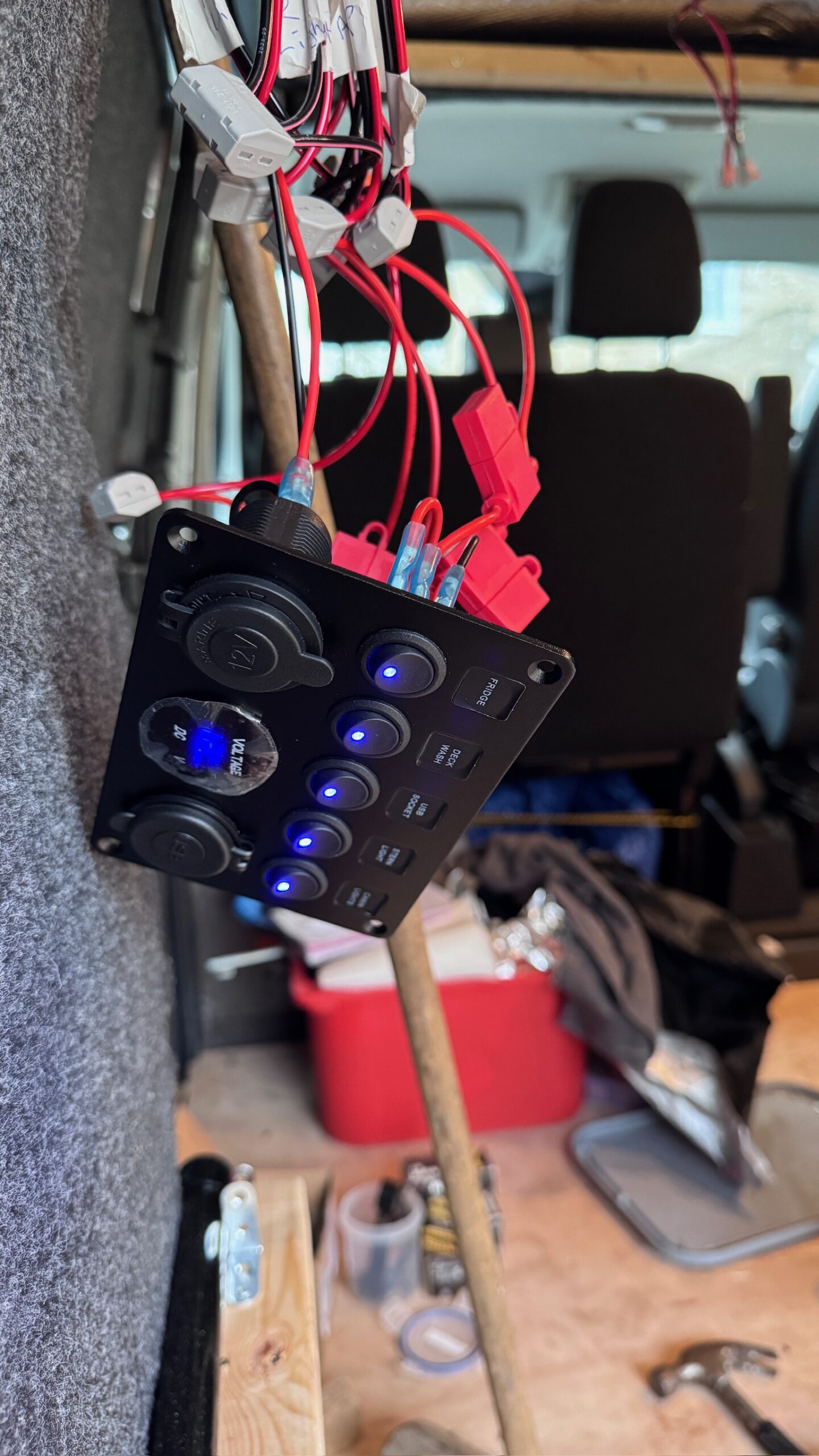

We decided on 5 main circuits.

1. Front lights

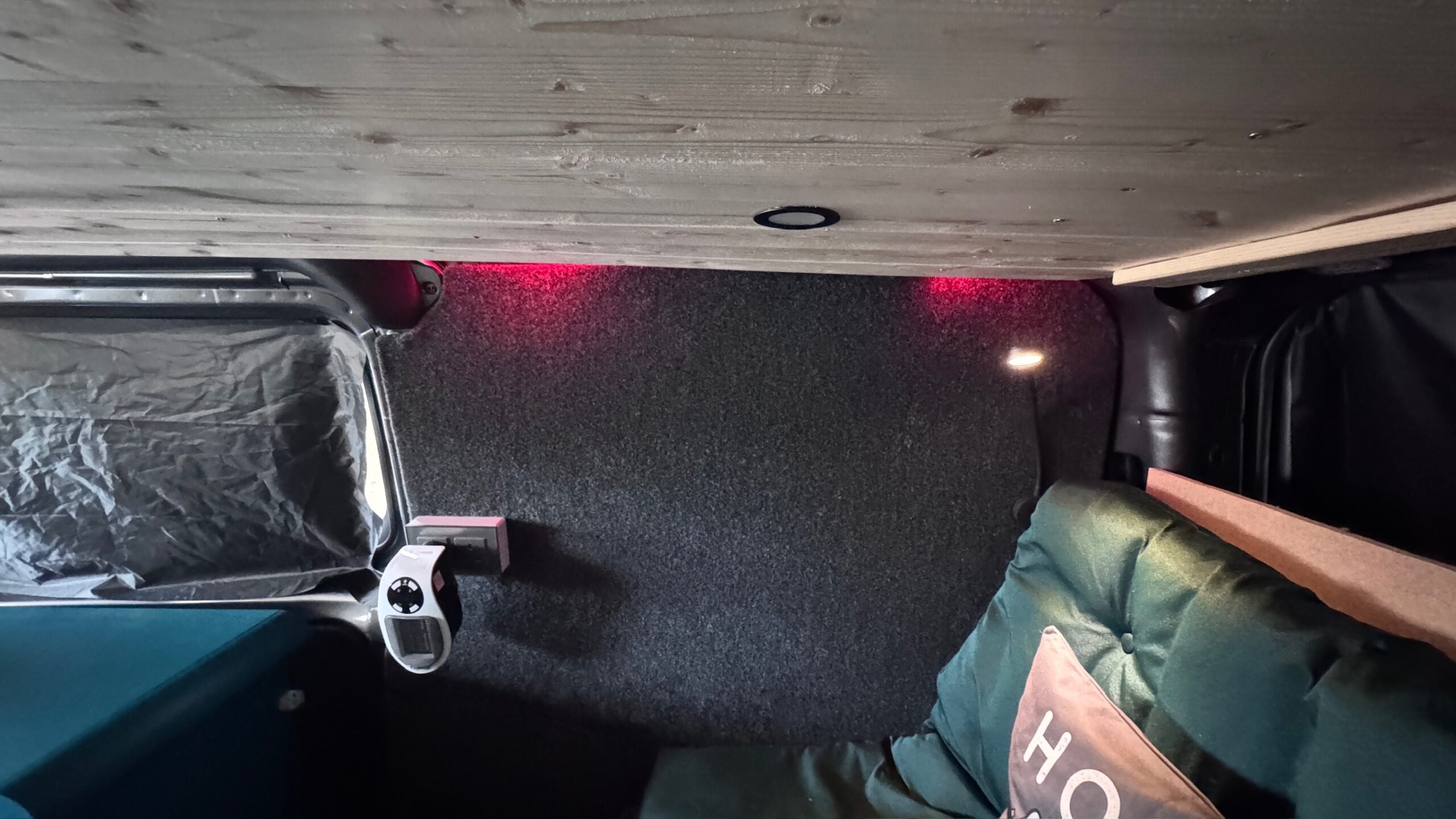

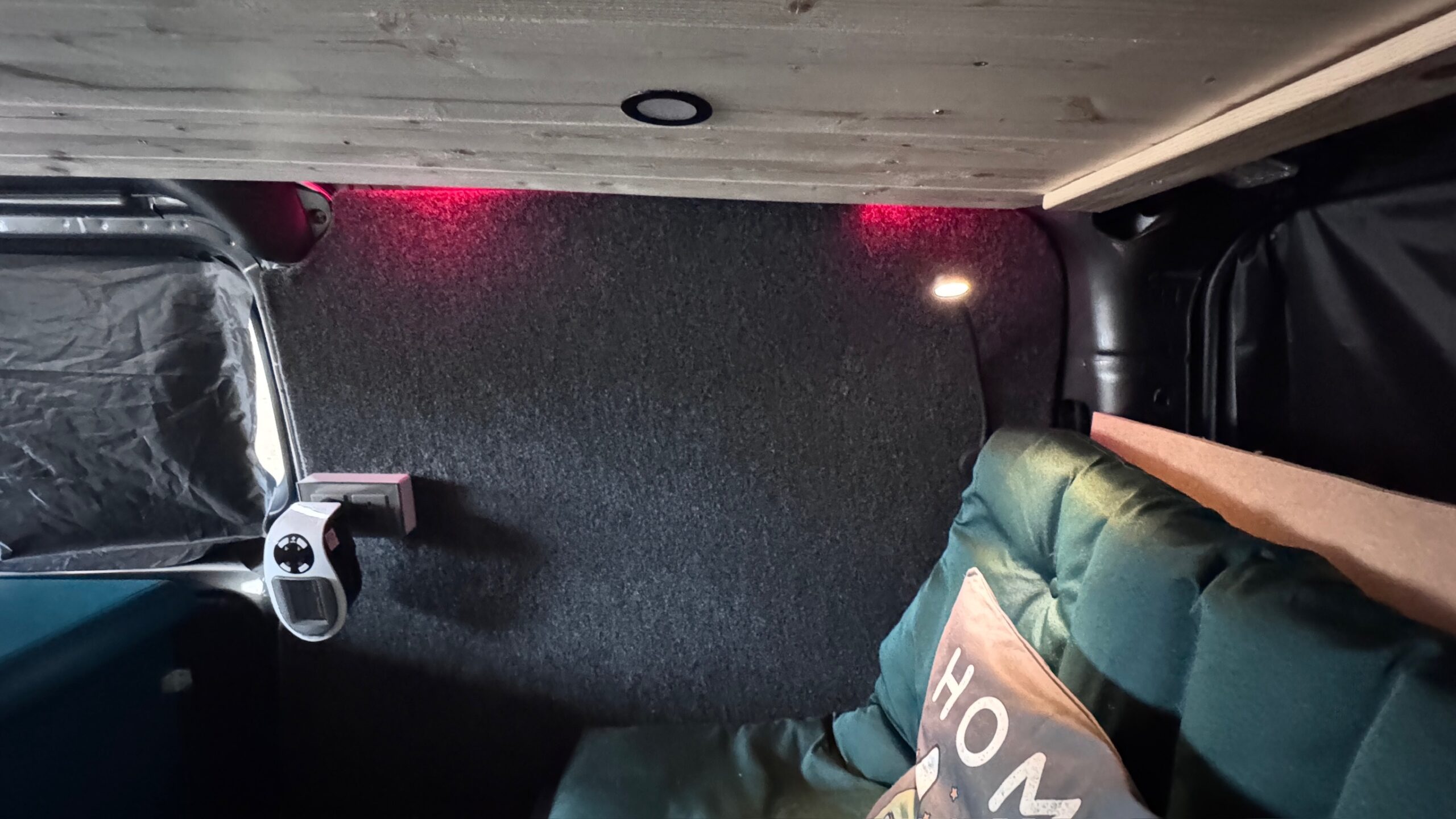

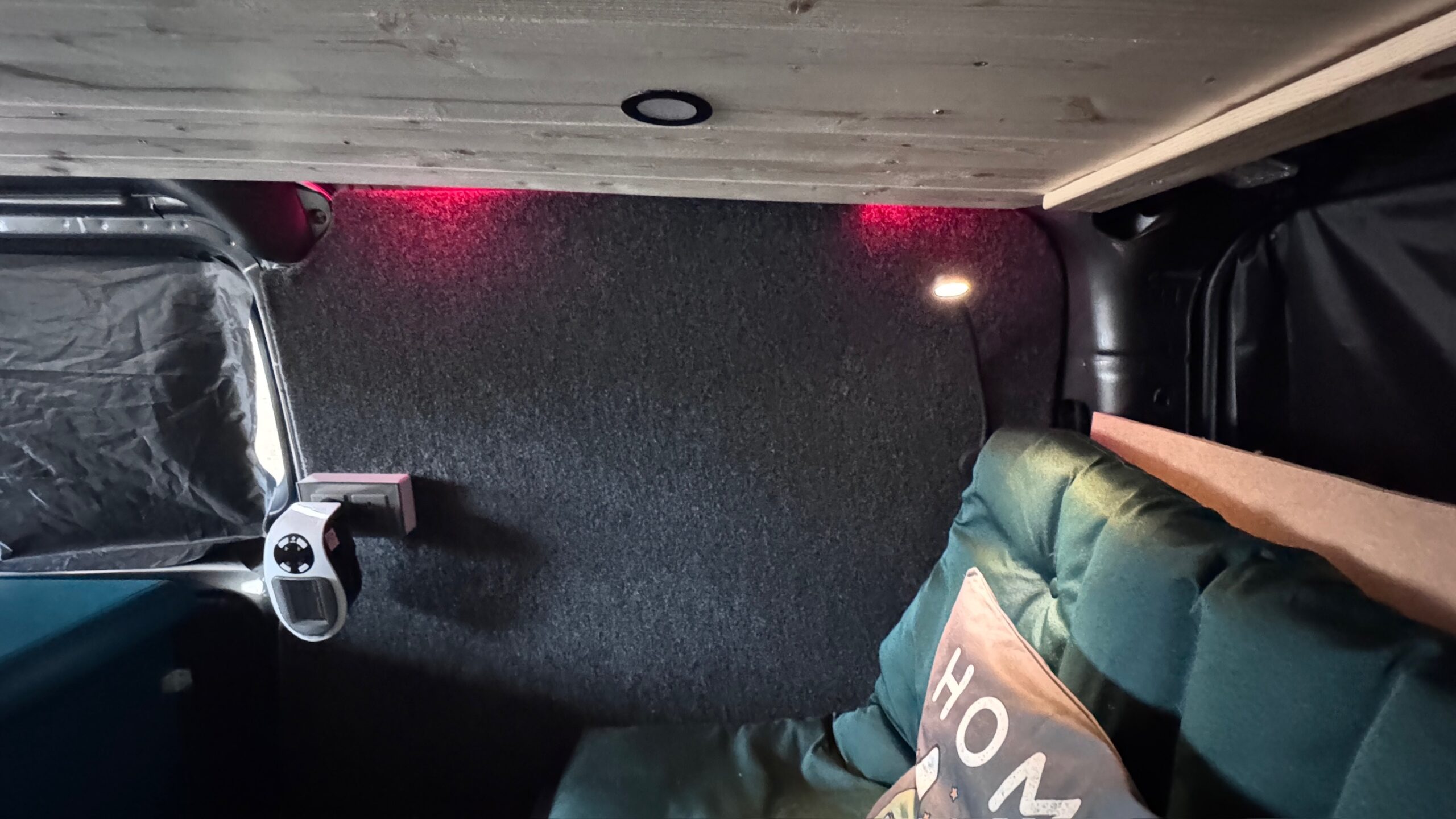

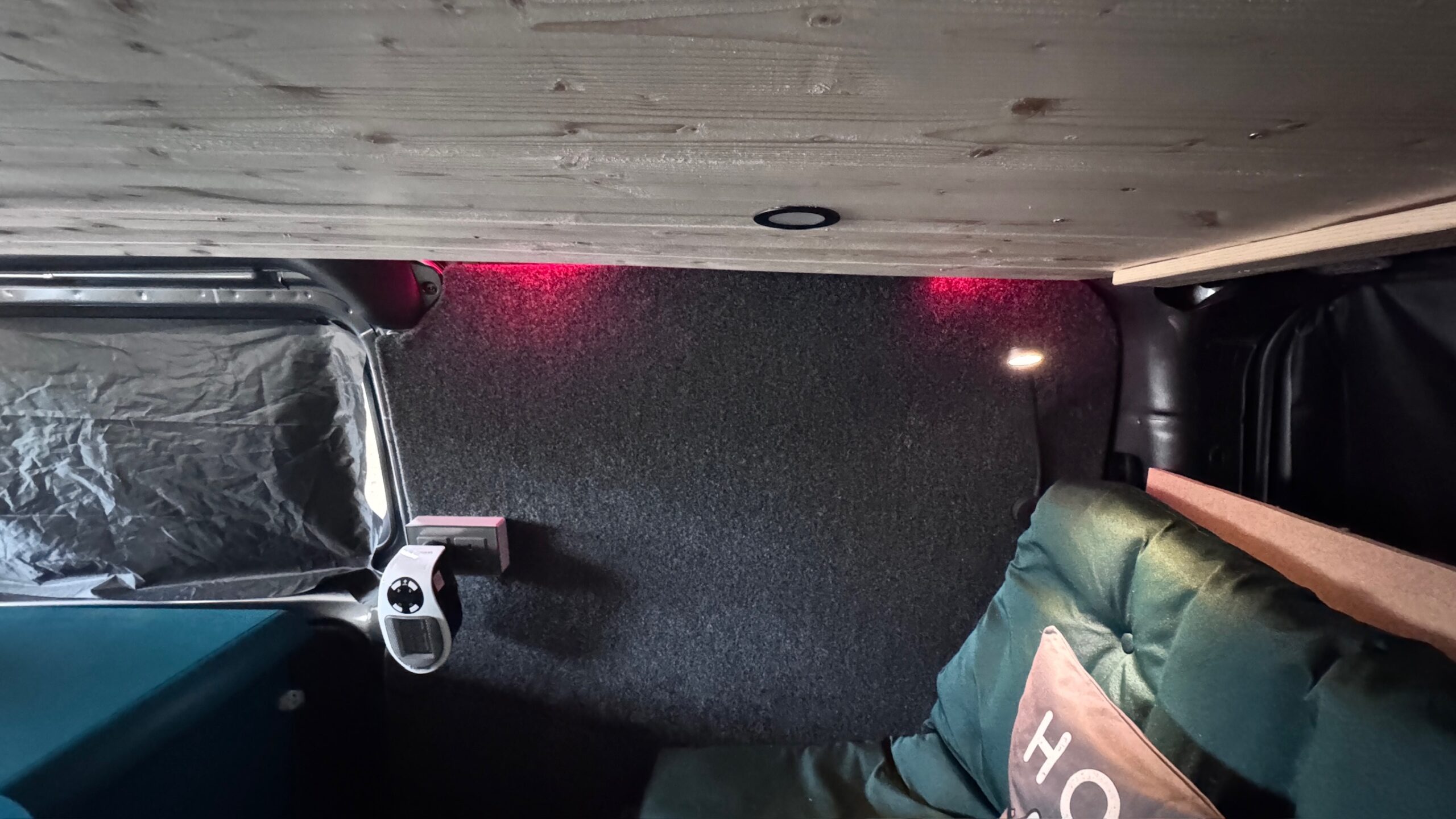

2. Rear Cabin lights
3. All kitchen Area, including kitchen lights, tap and usb access.

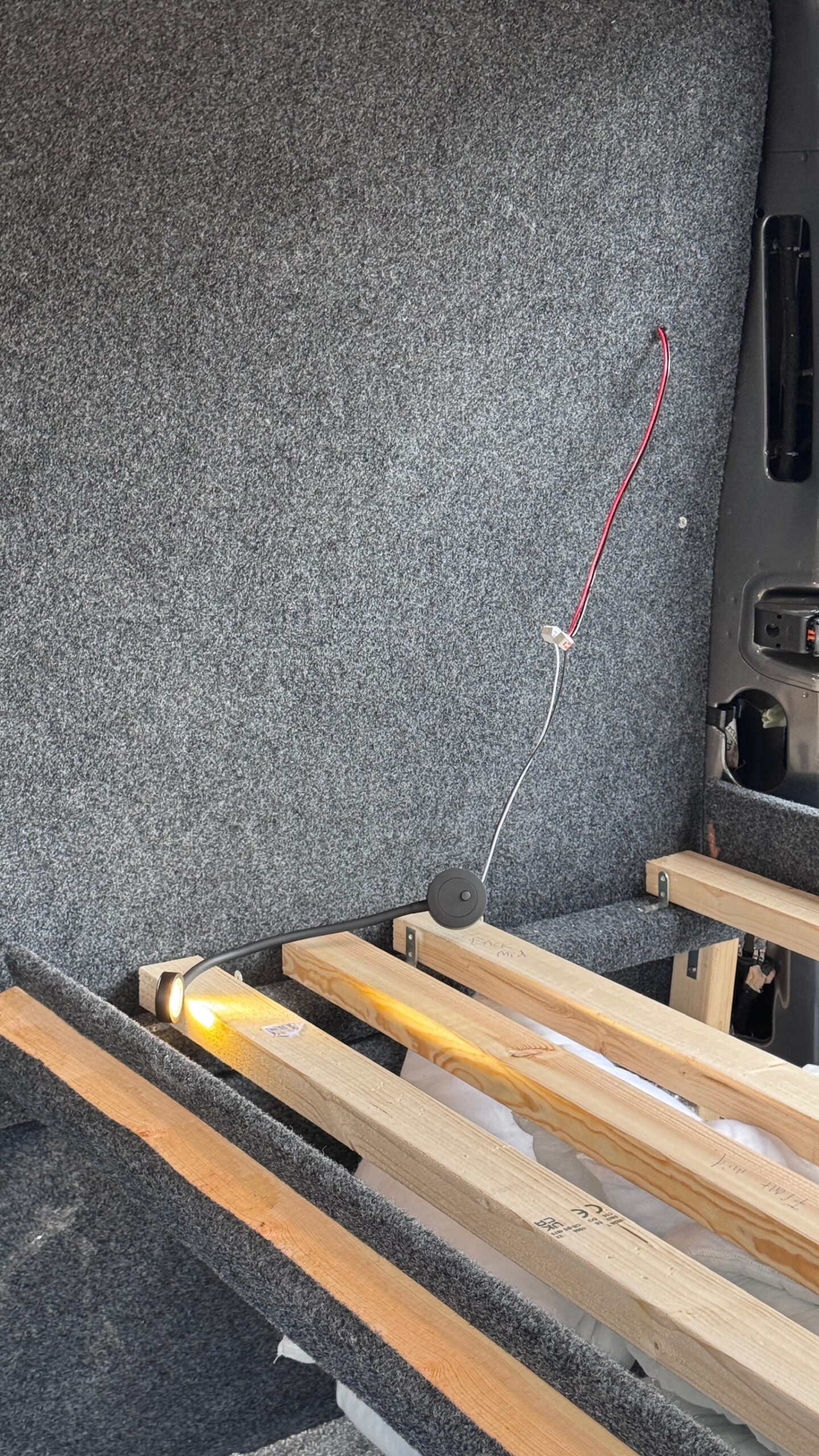

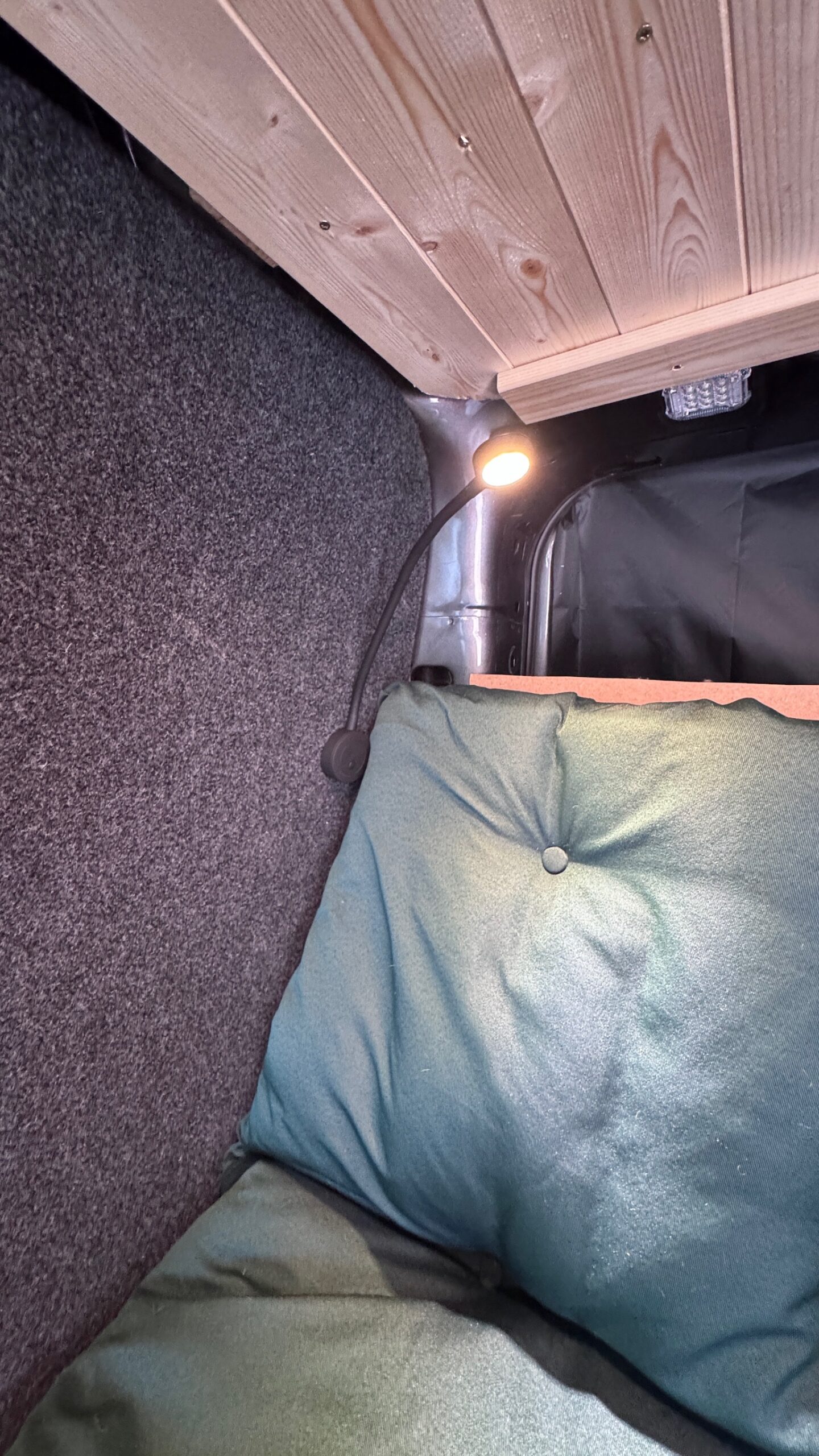

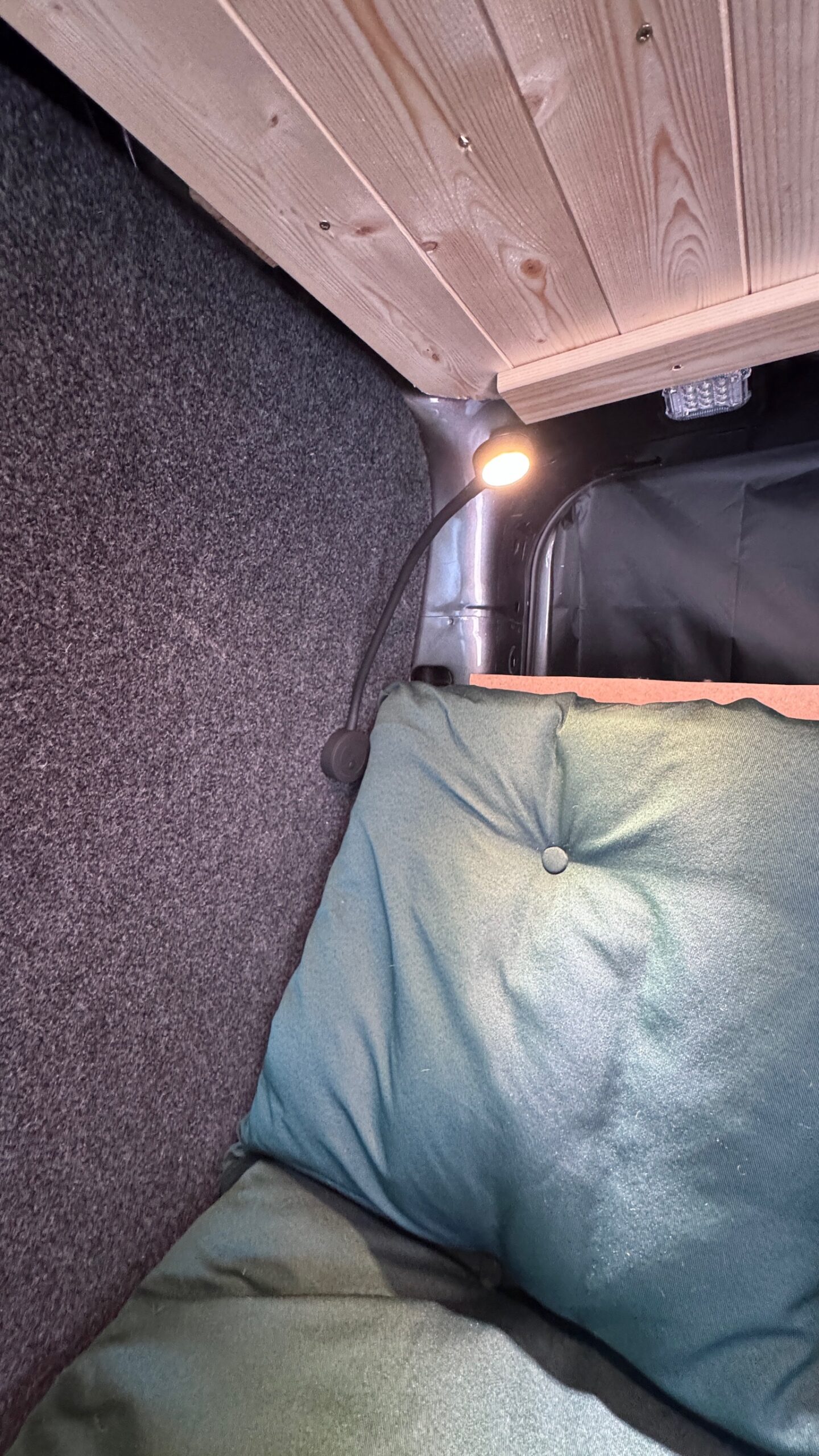

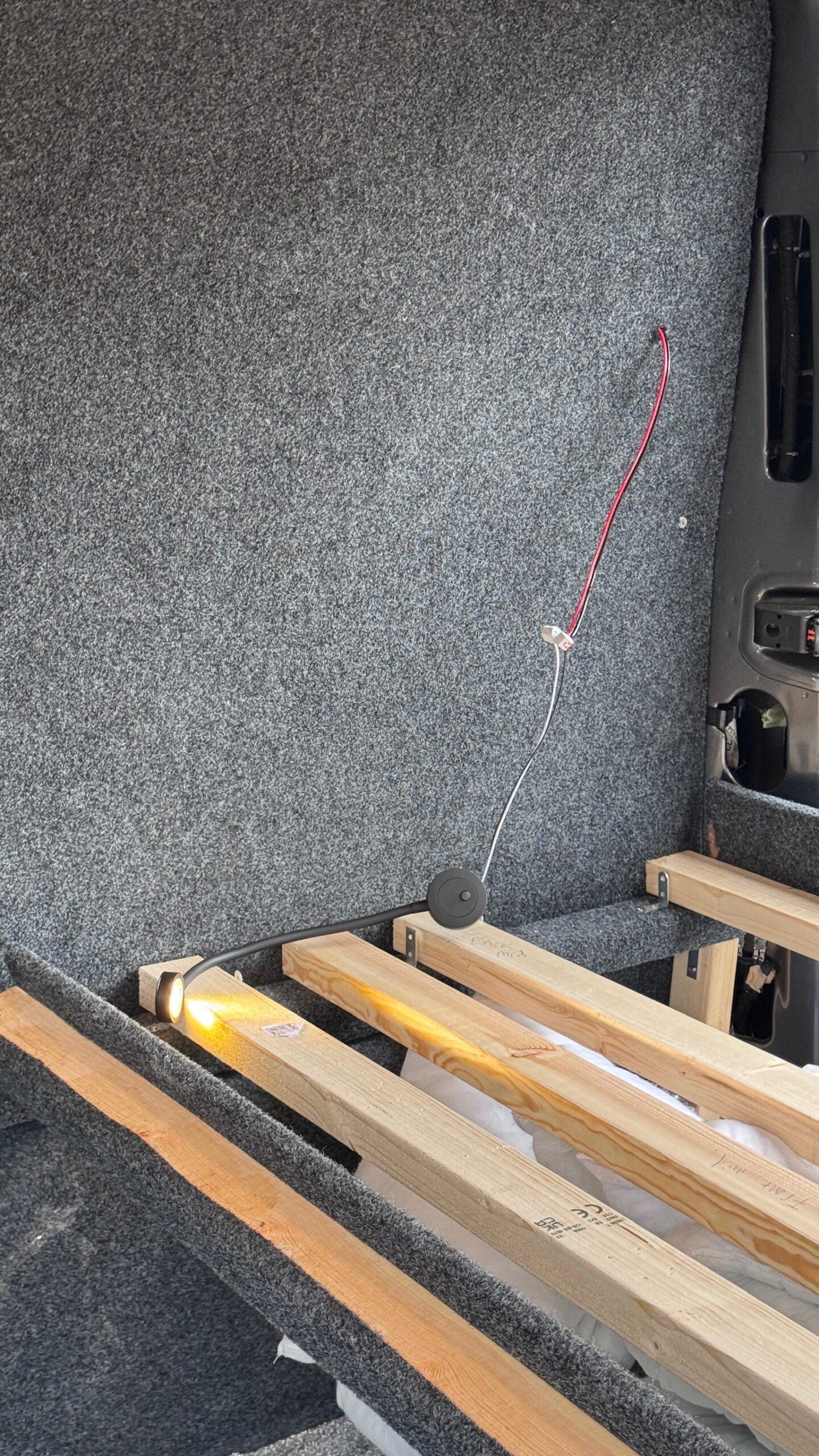

4. Rear reading lamps
5. Fridge circuit
6. Mains 240v radial

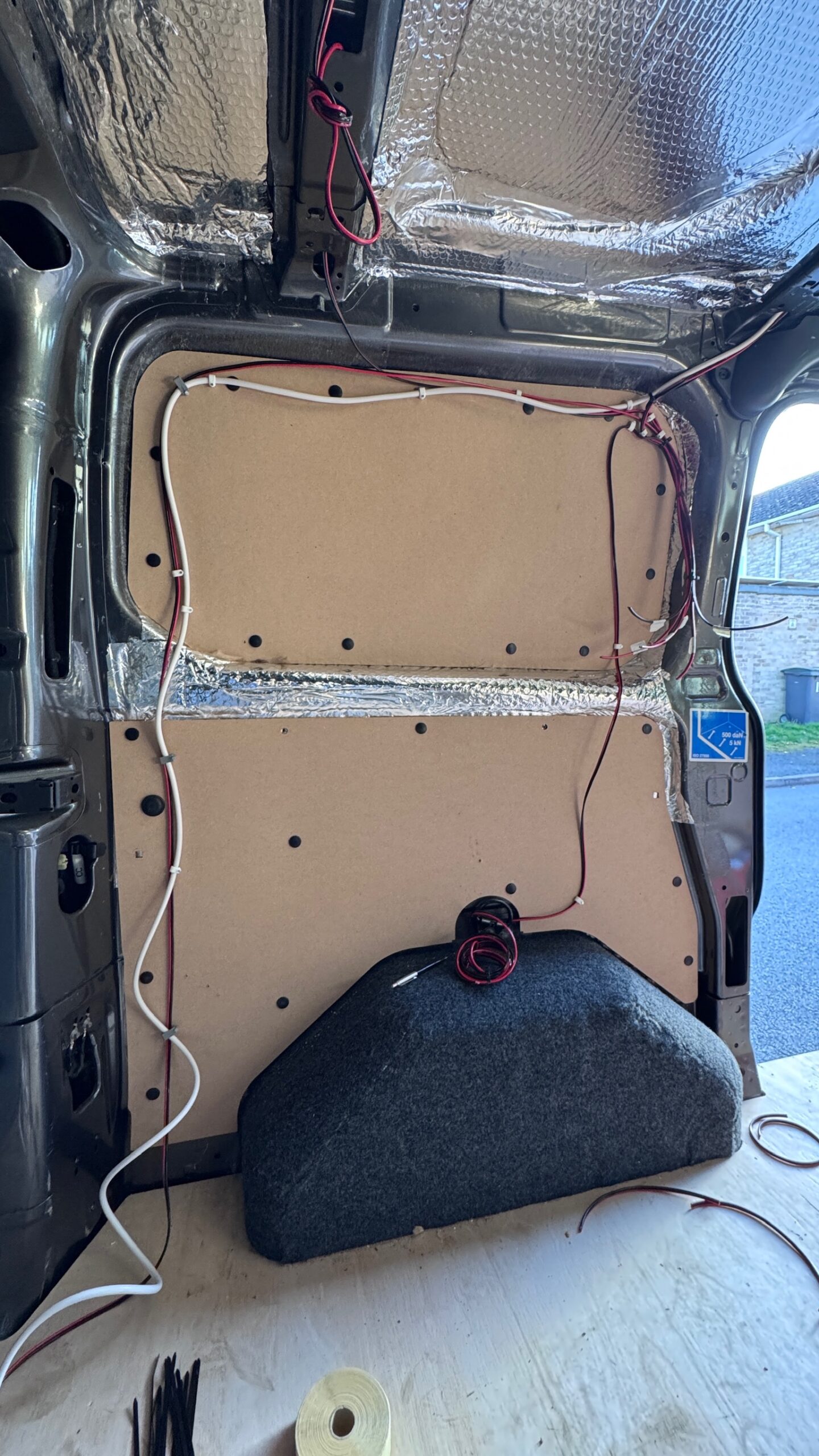

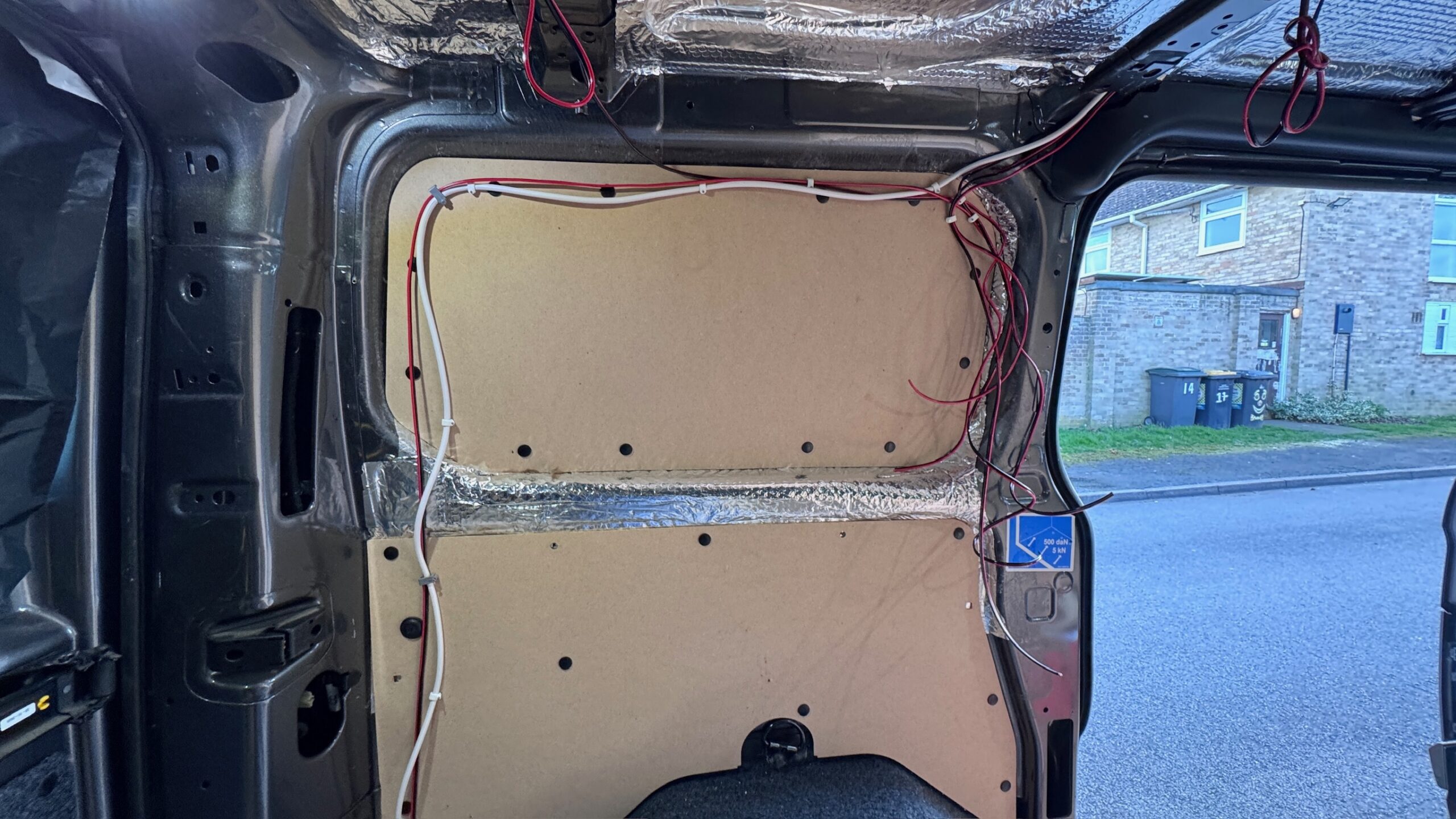

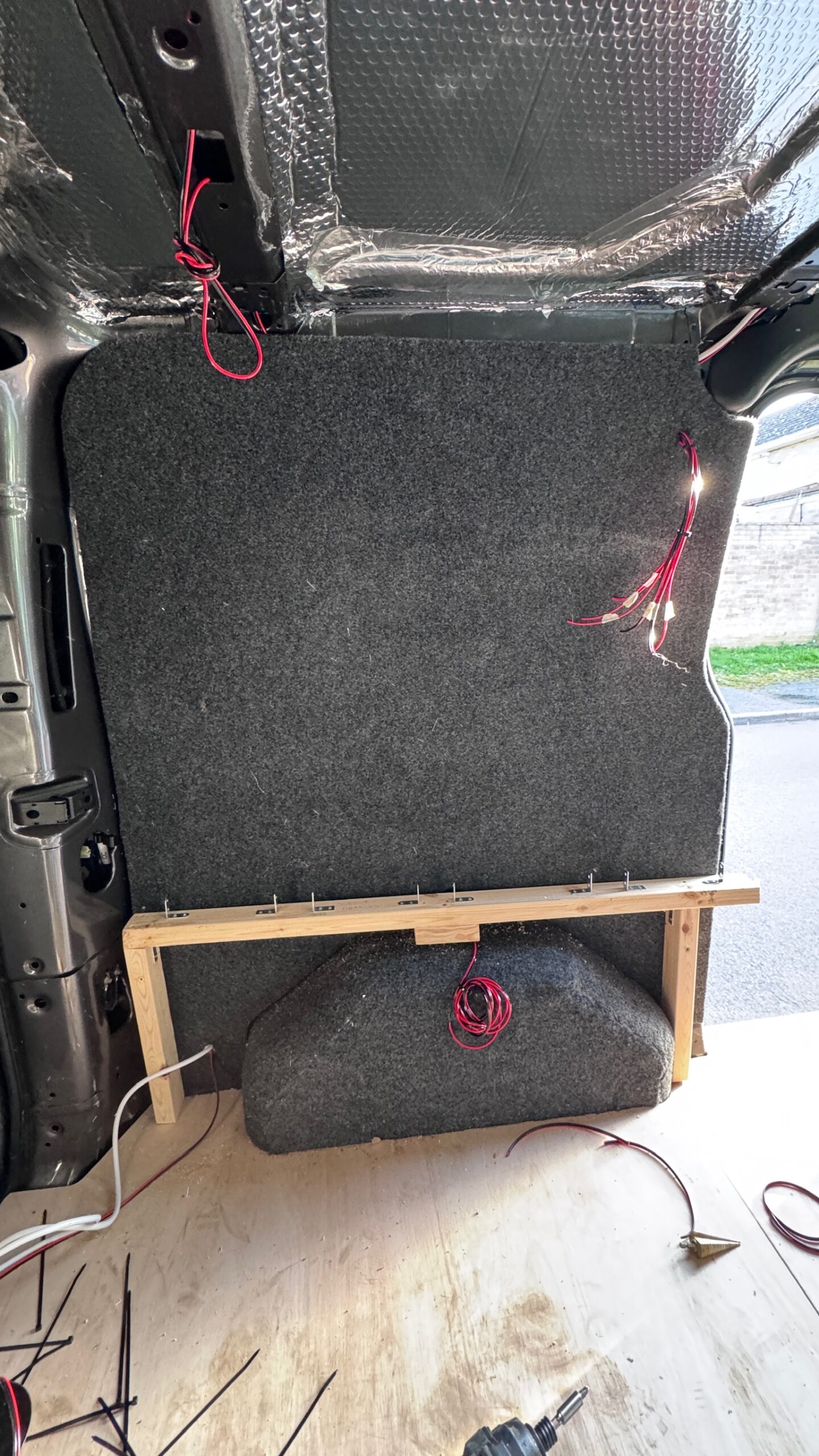

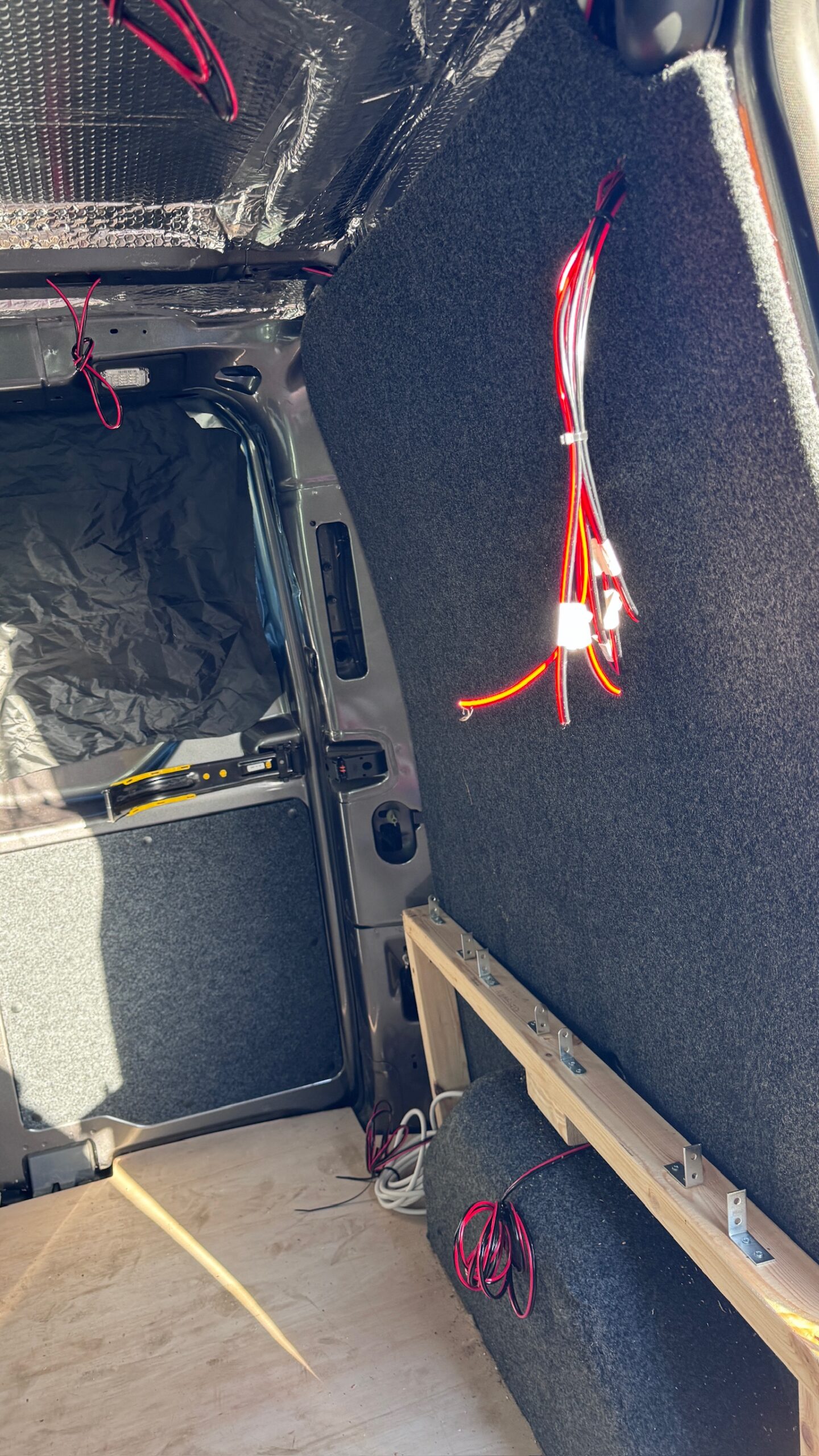

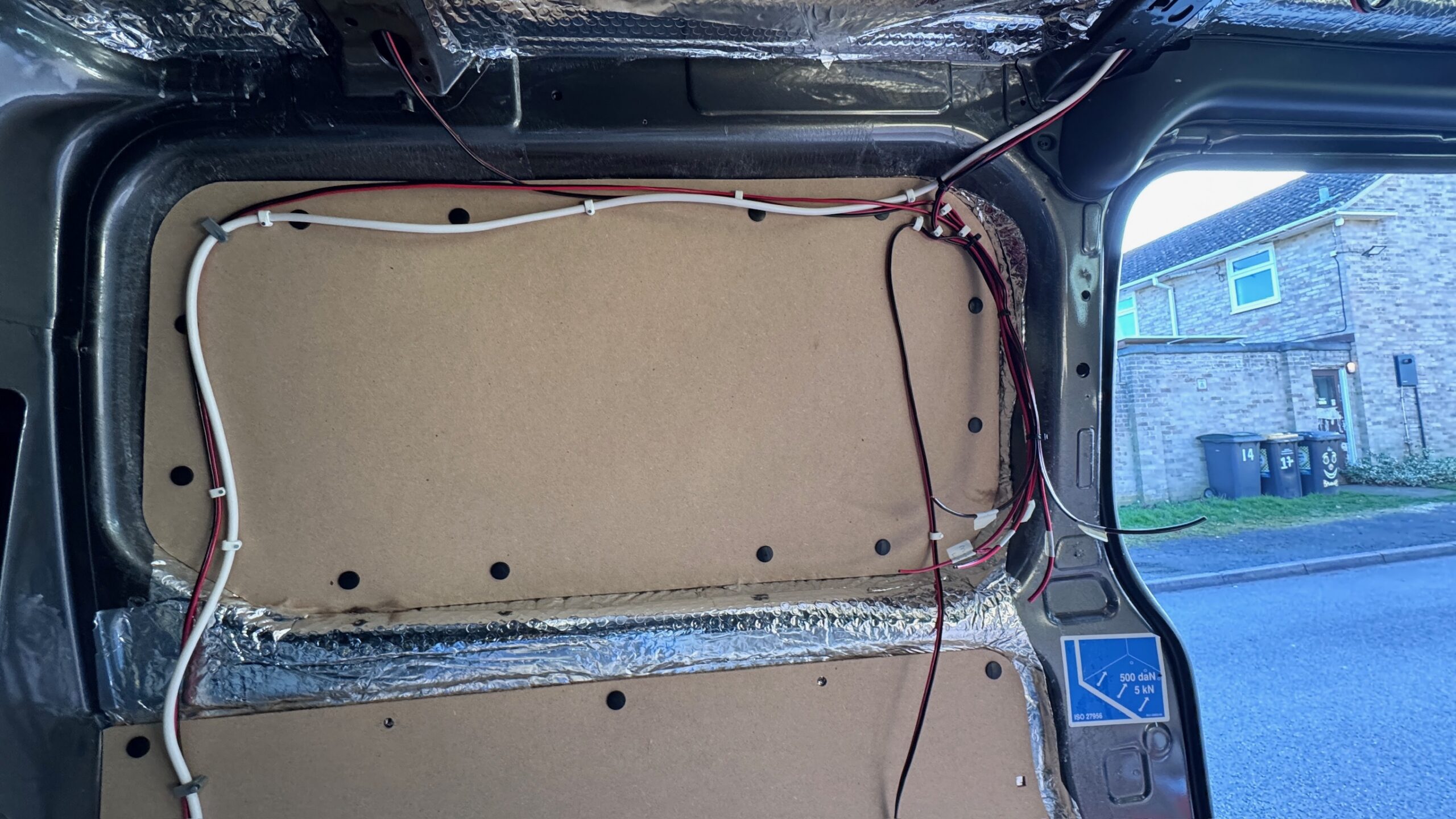

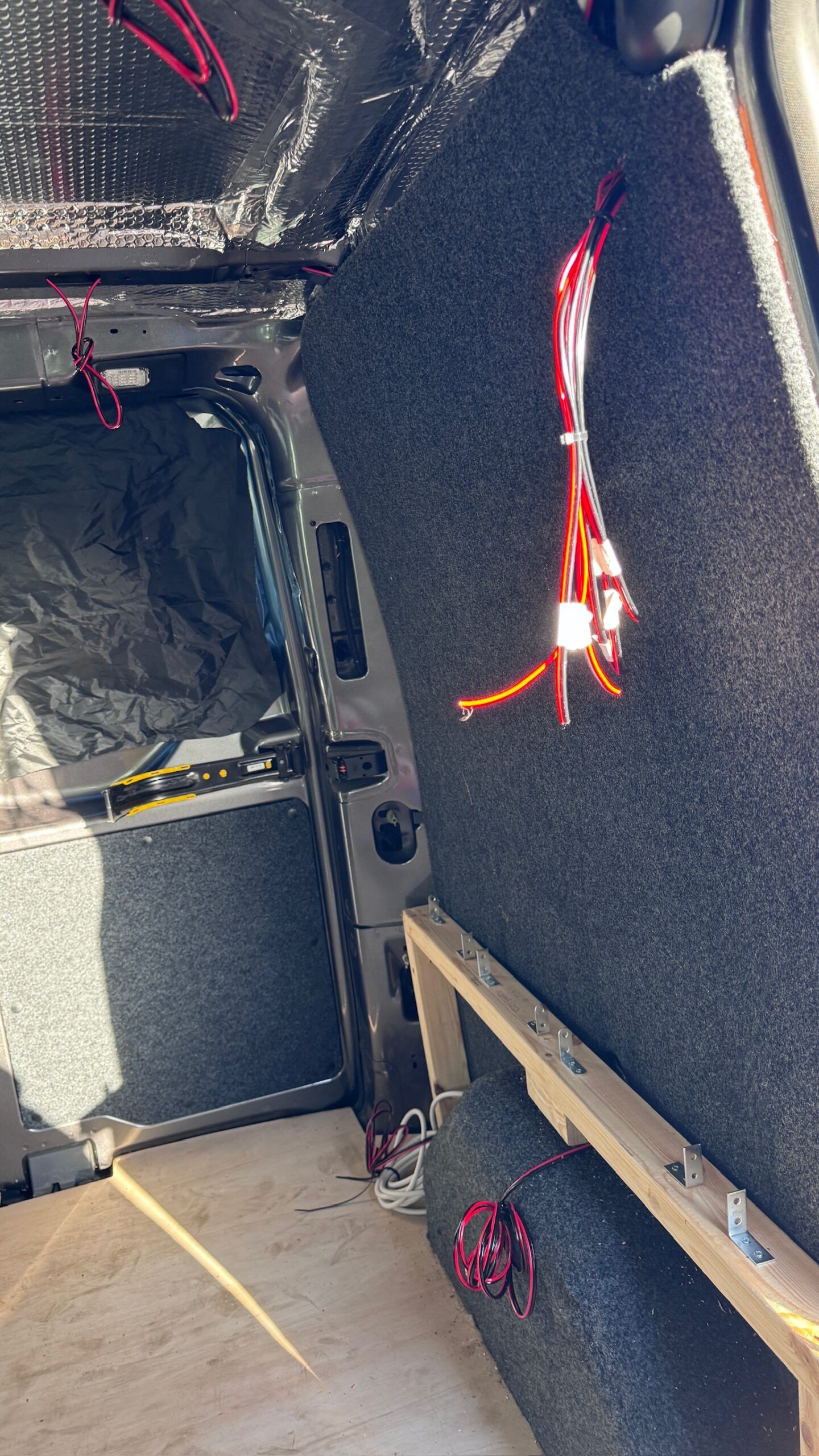

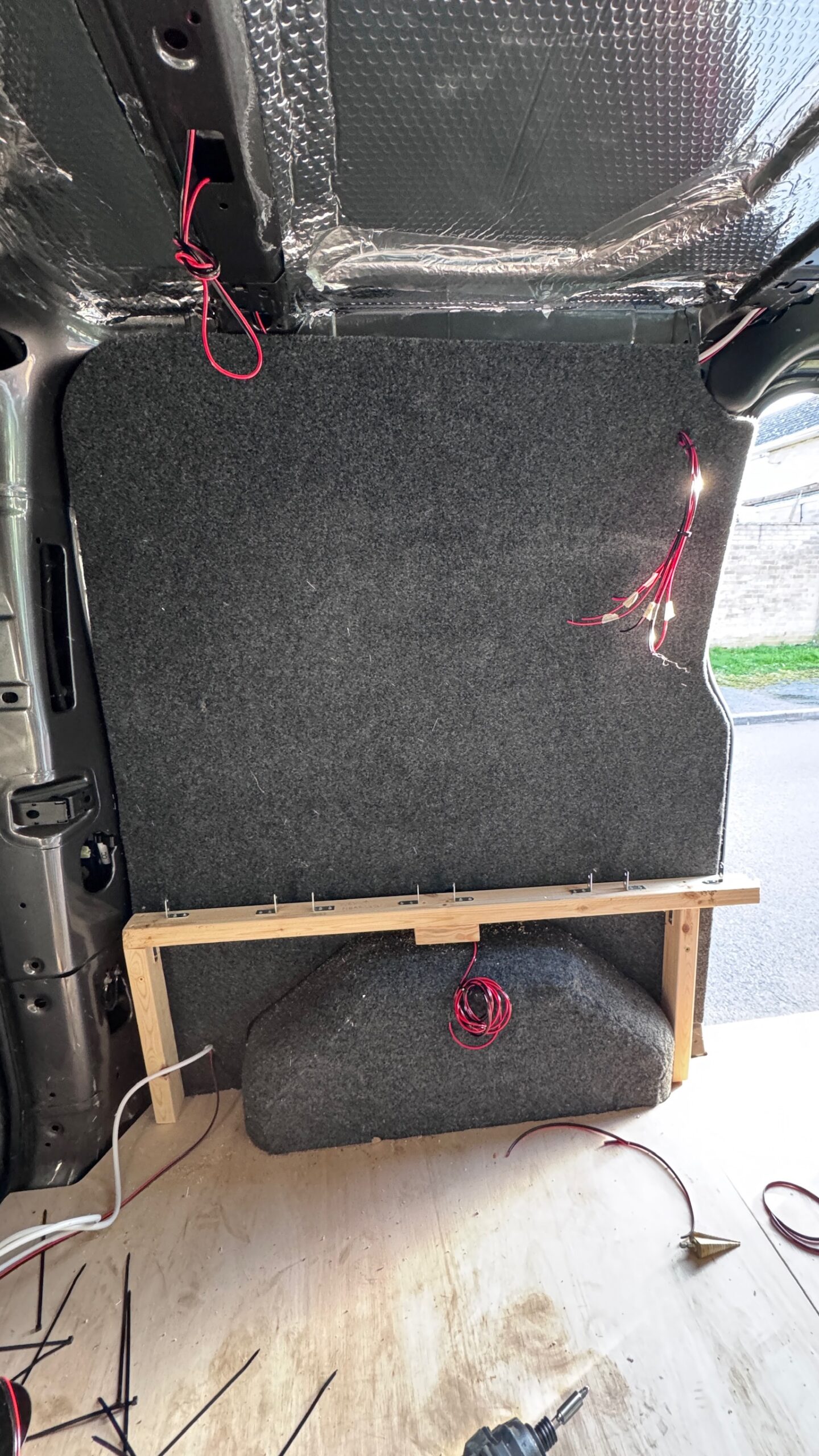

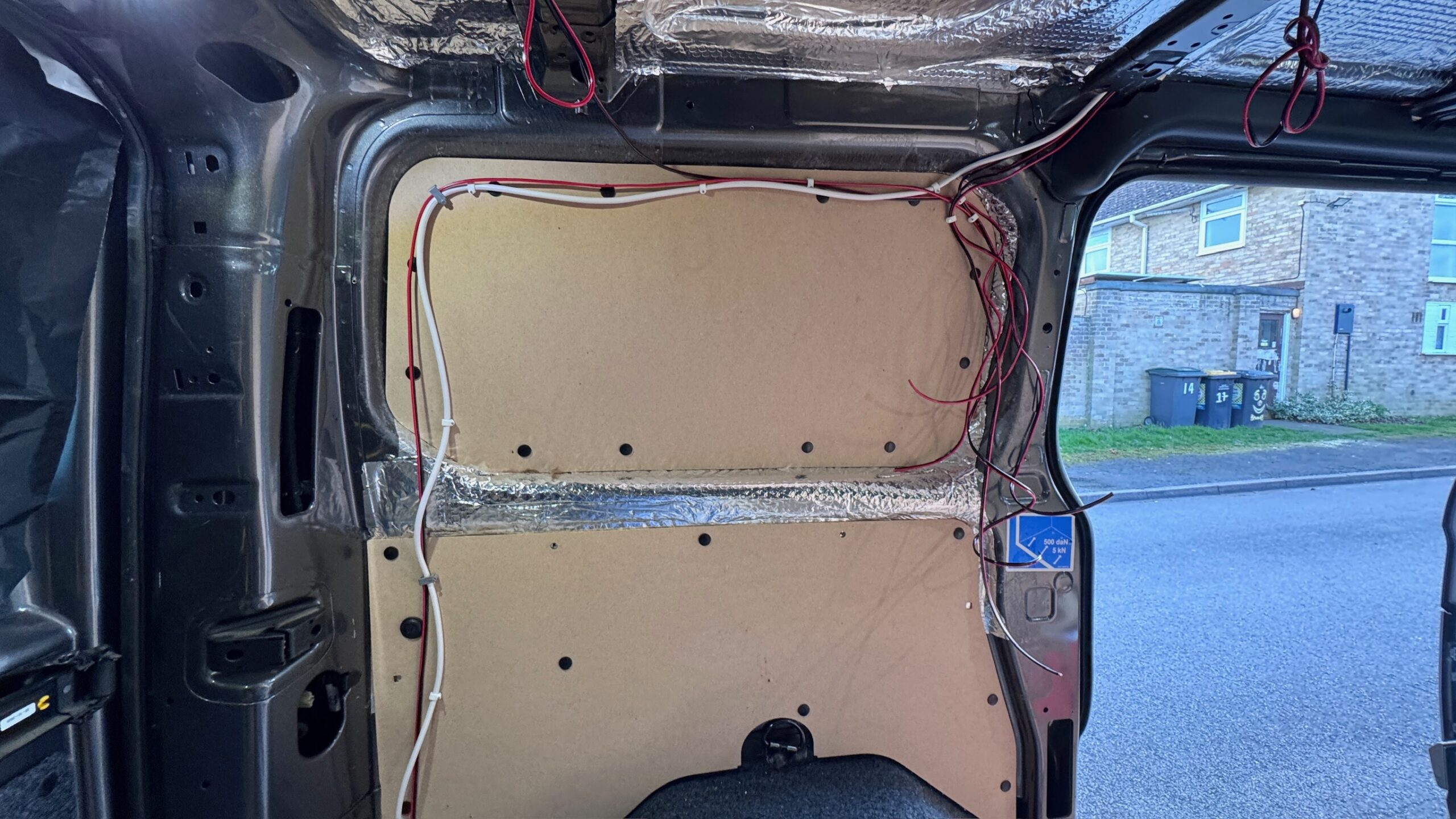

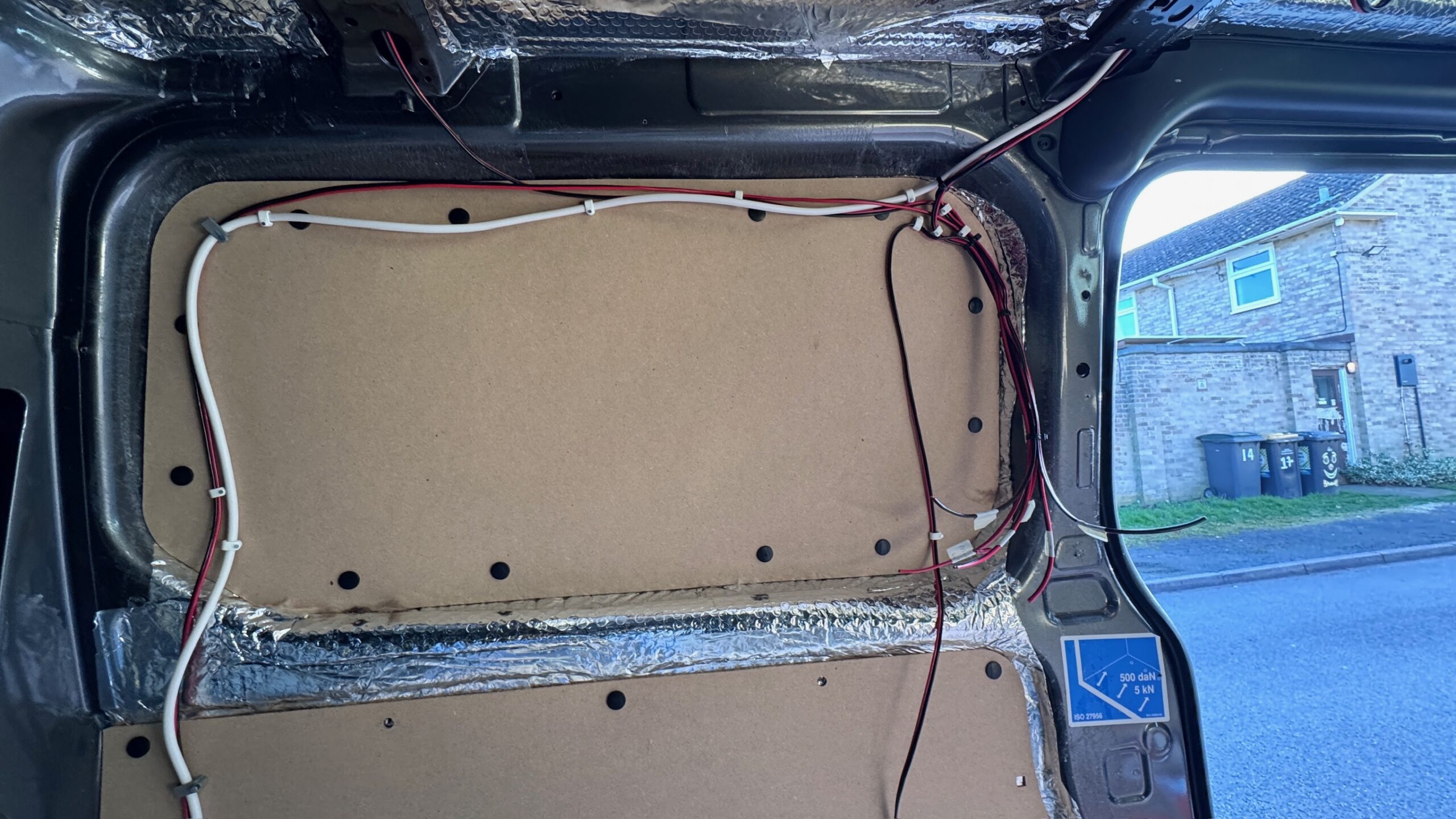

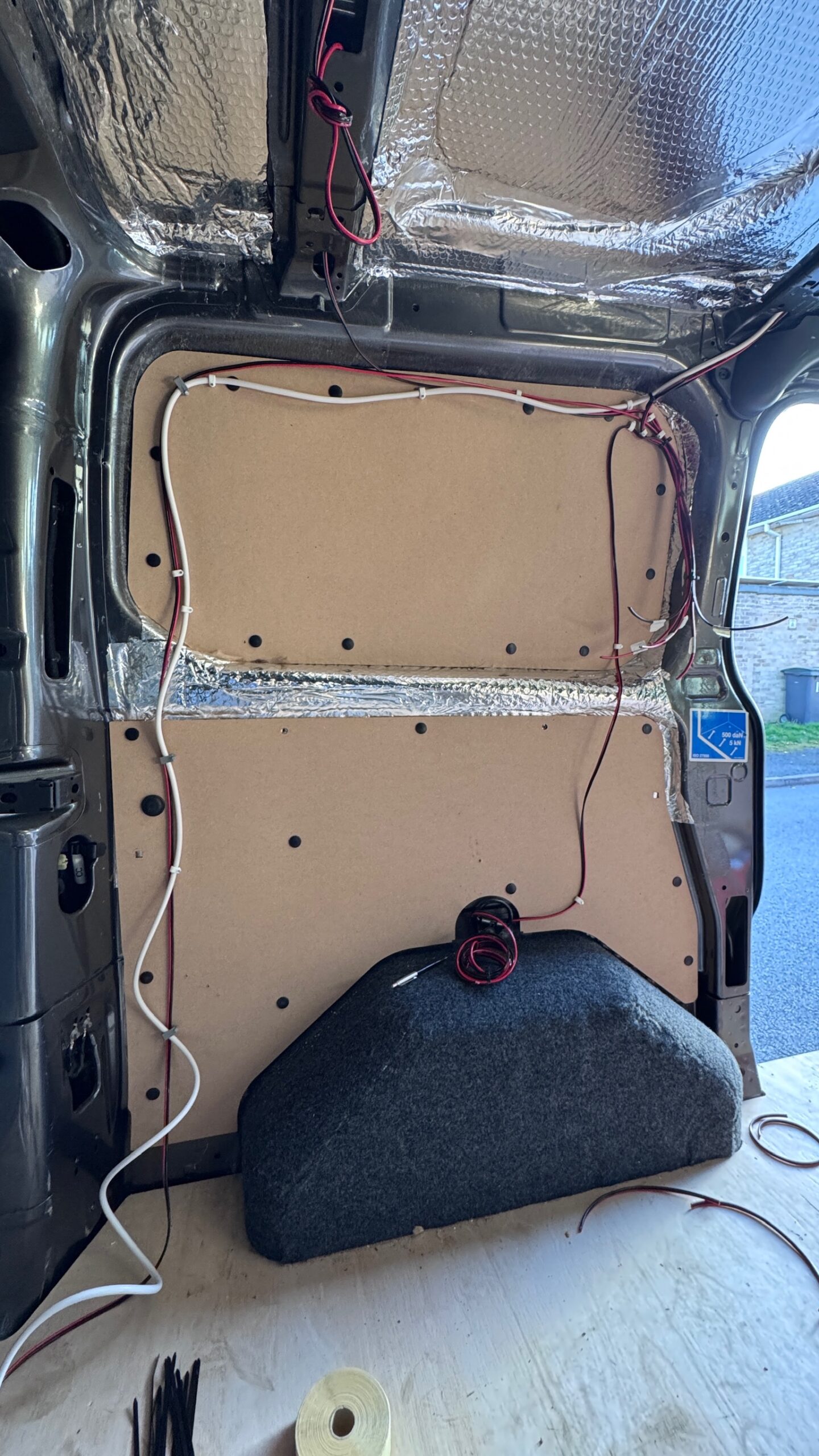

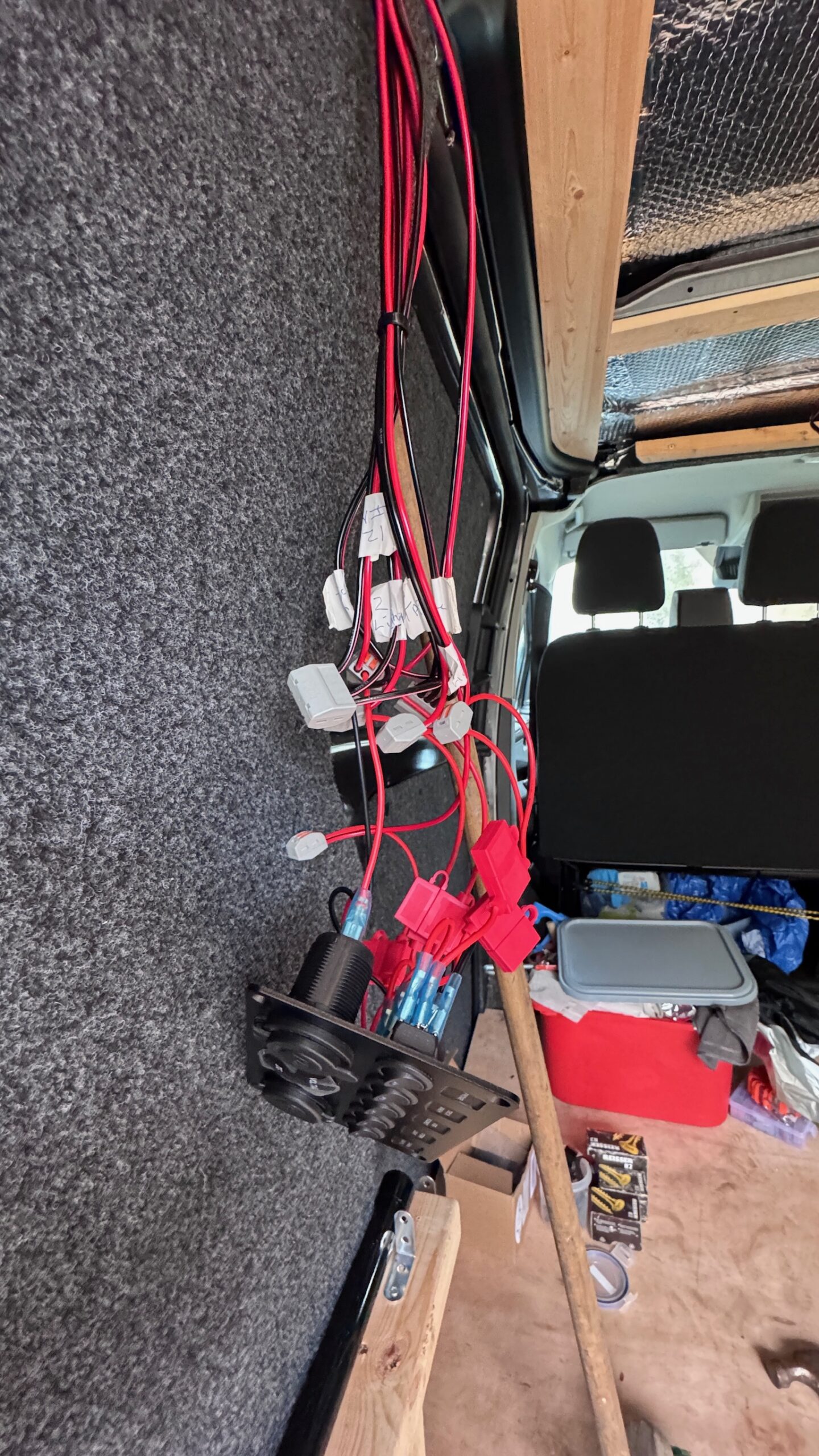

Cables were run in predictable vertical or horizontal positions to make later securing with screws safer with less chance of drilling through a cable.

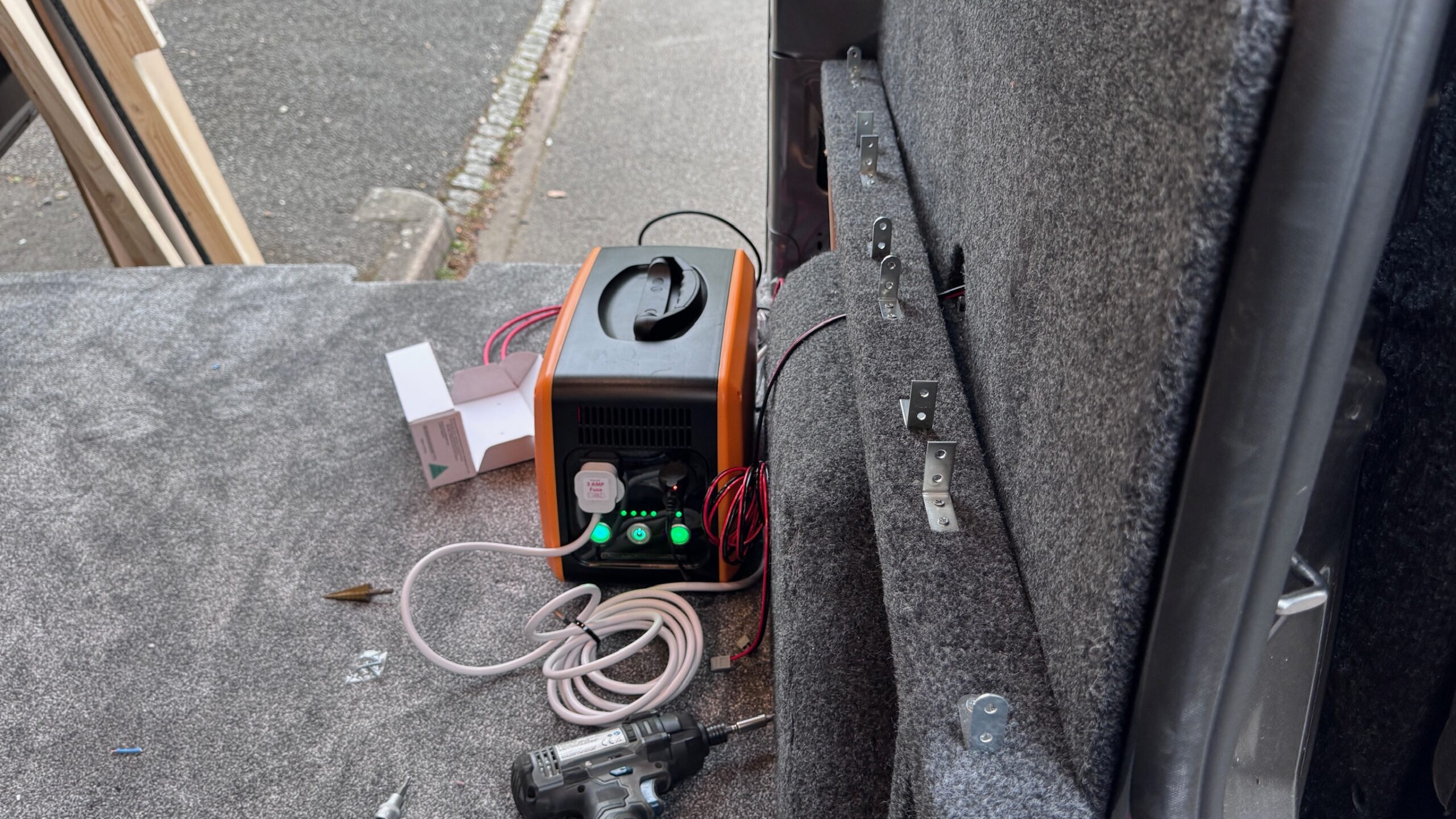

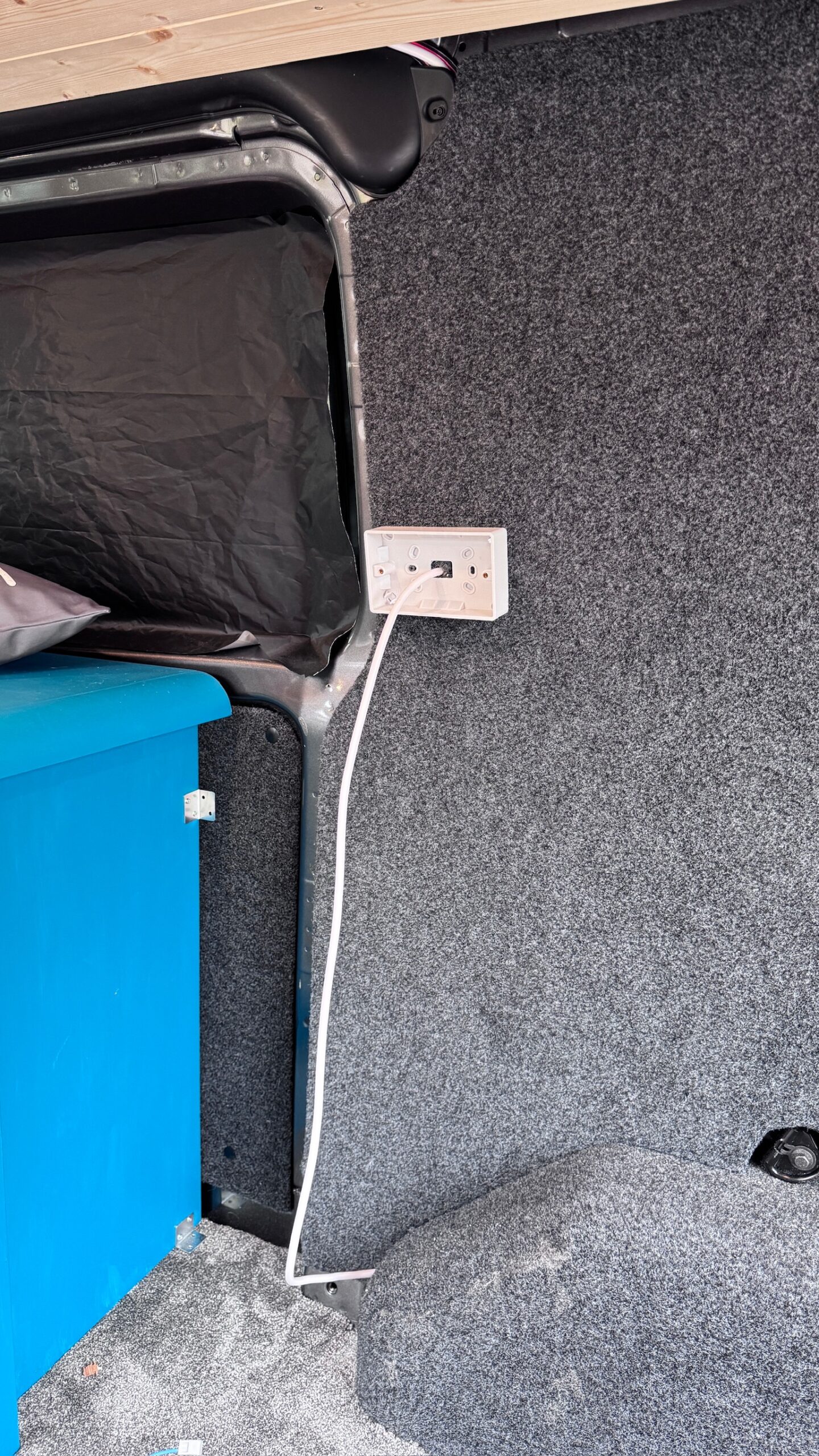

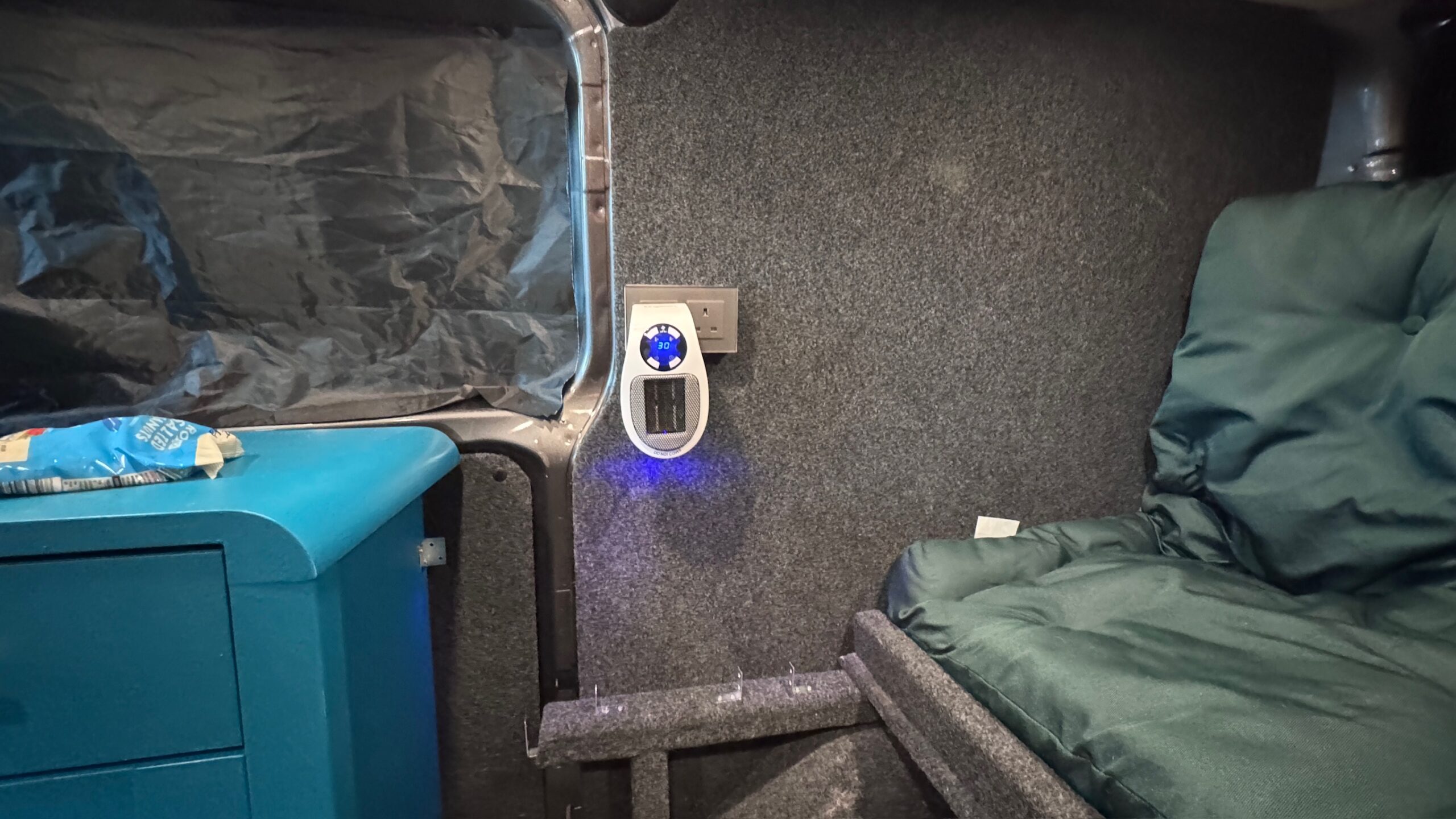

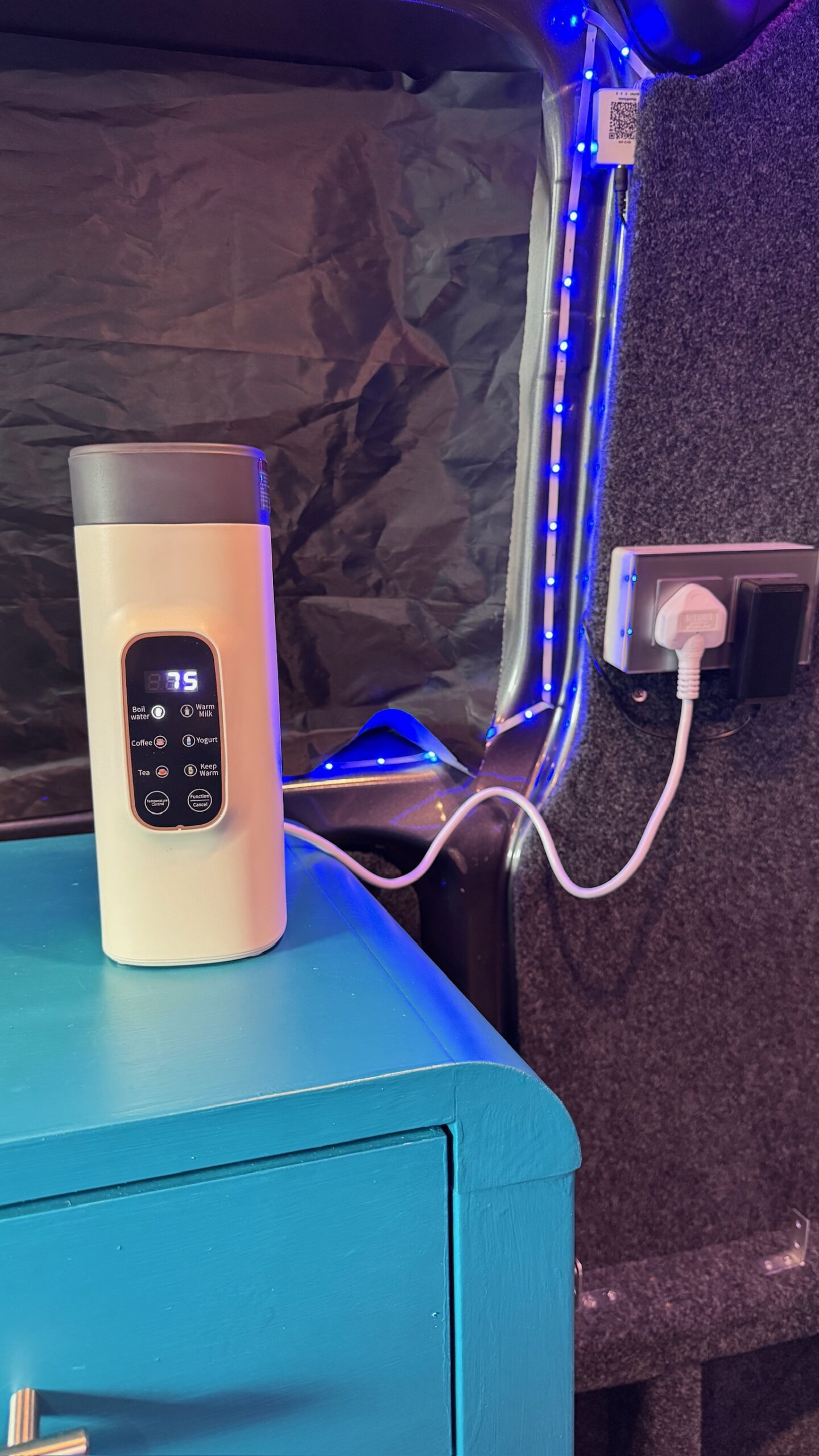

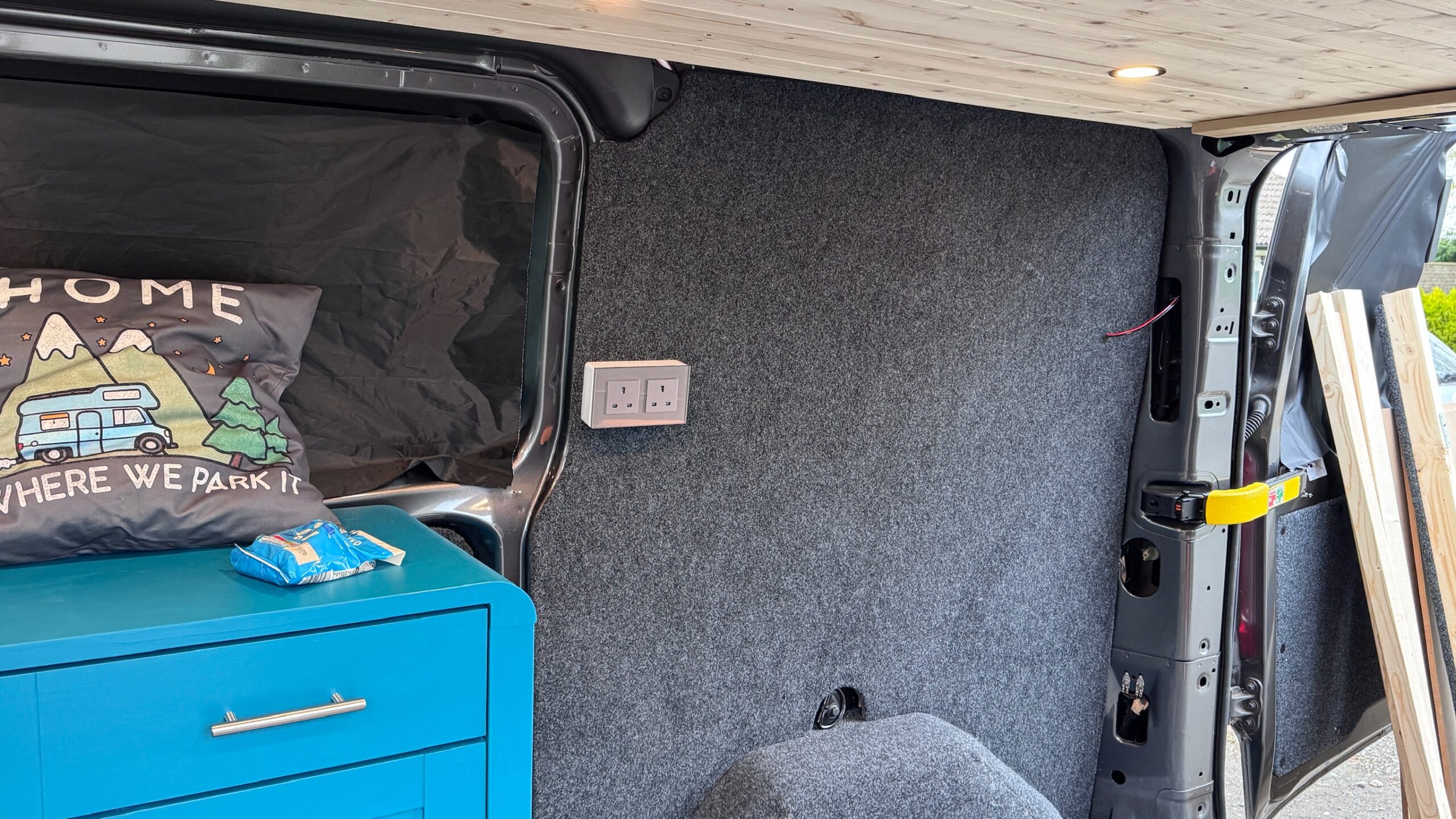

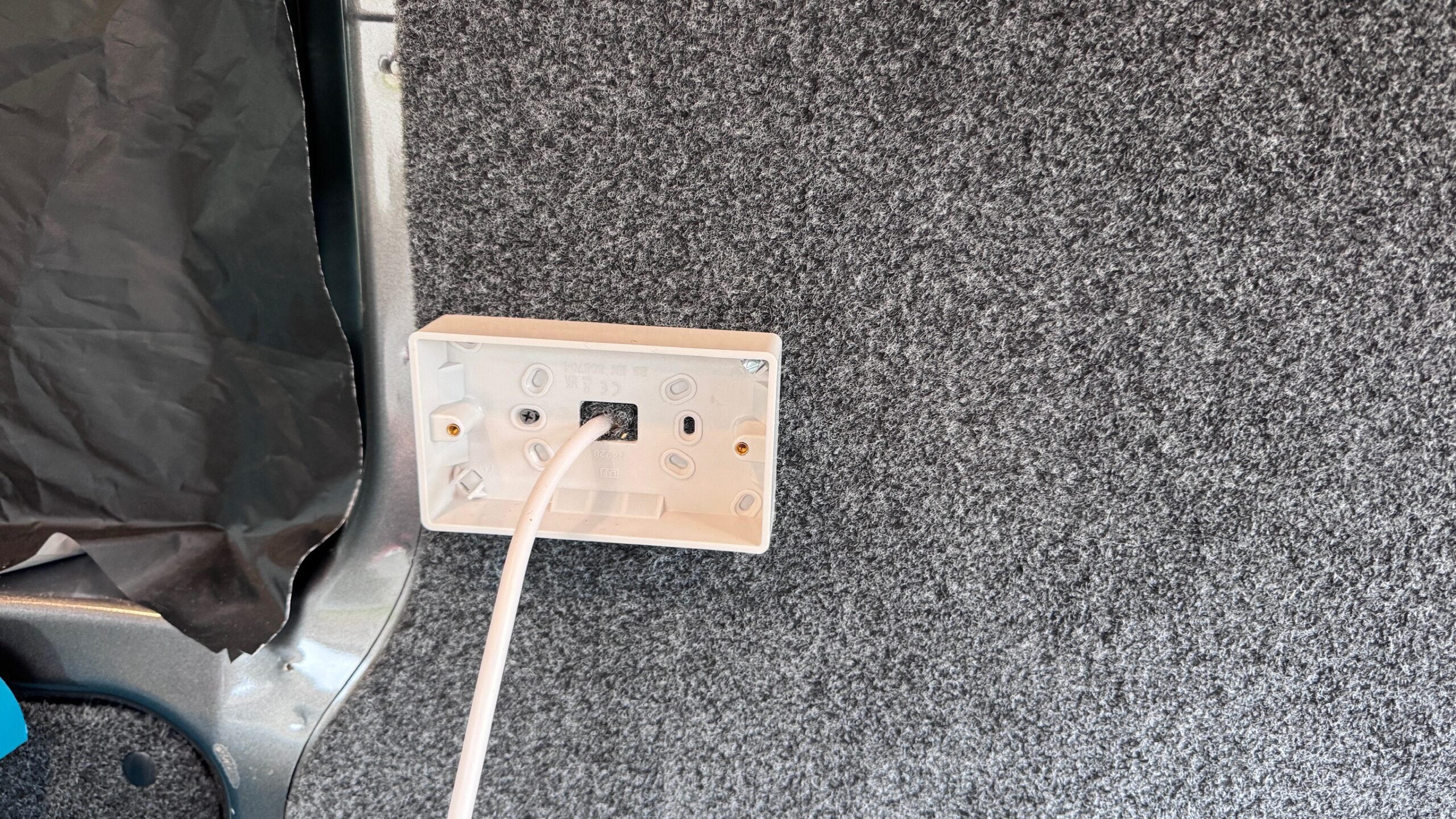

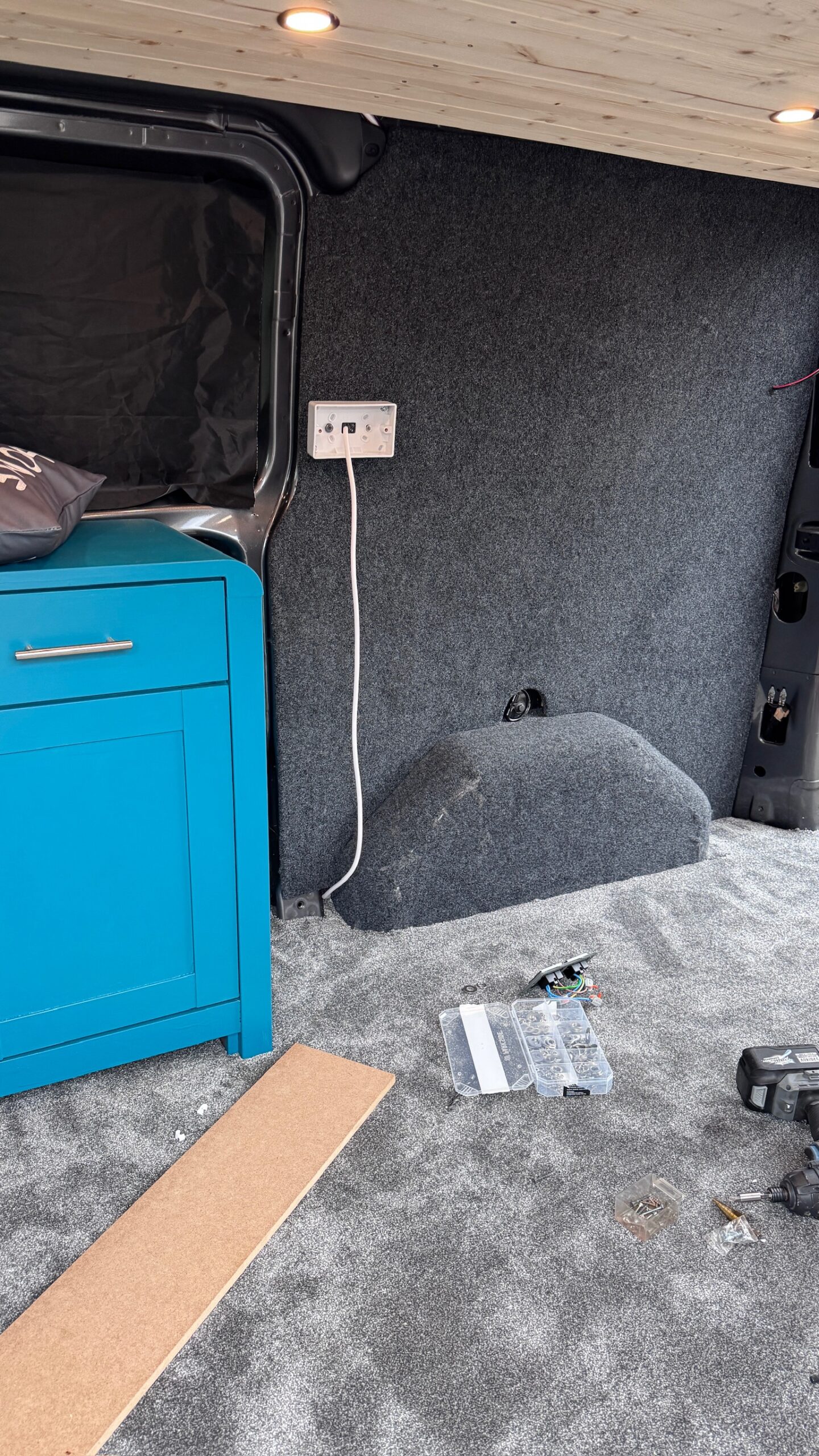

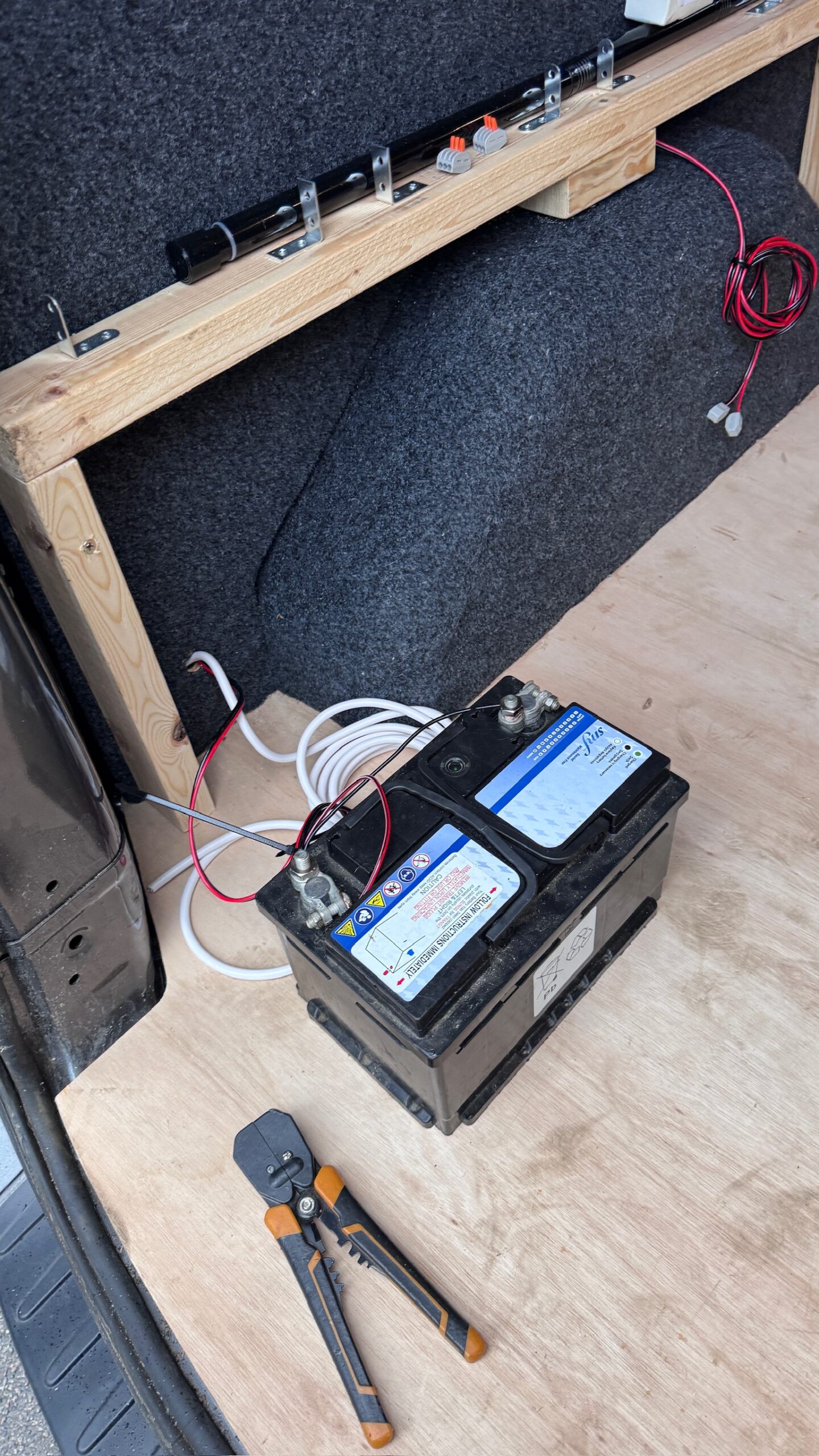

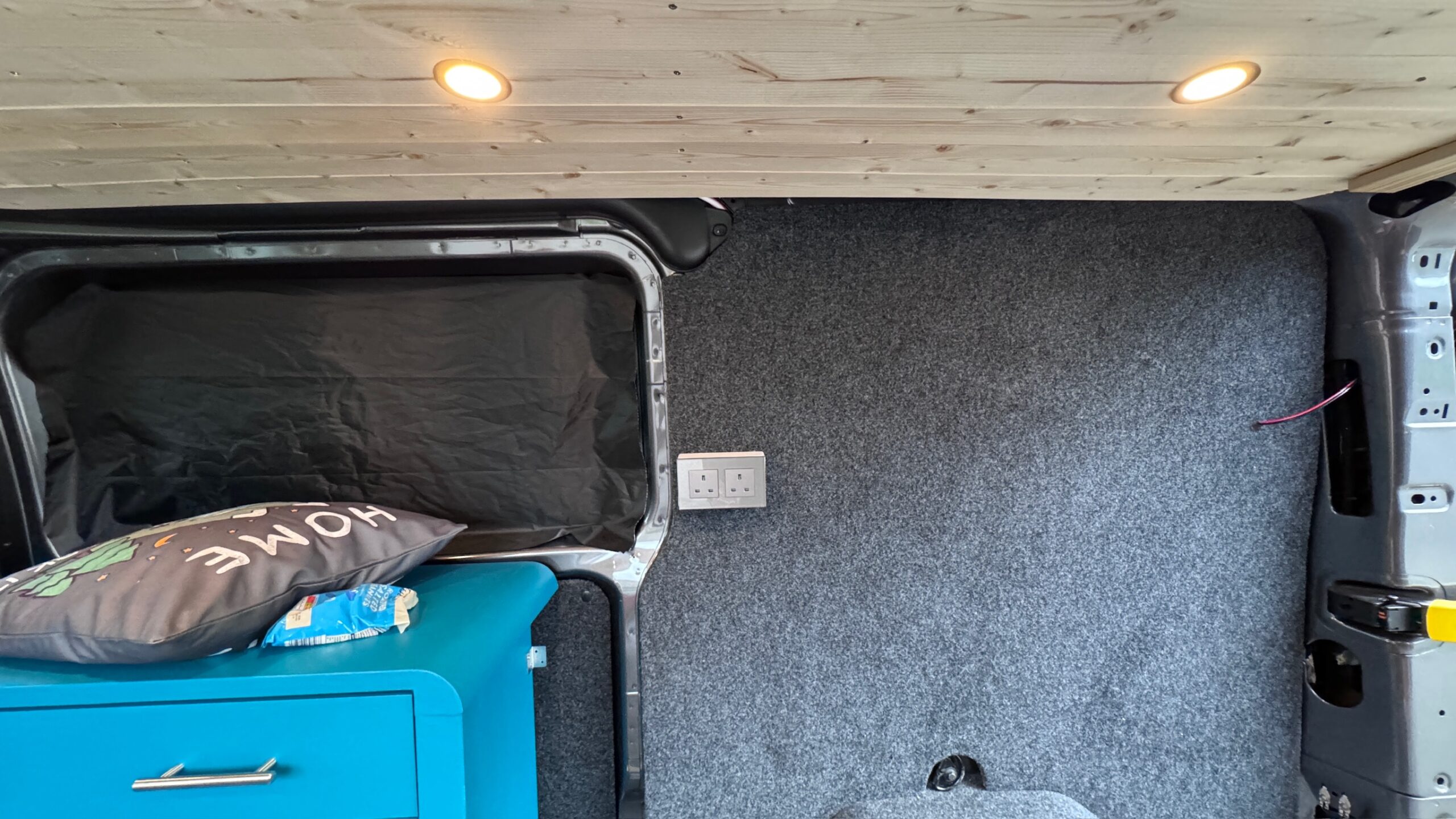

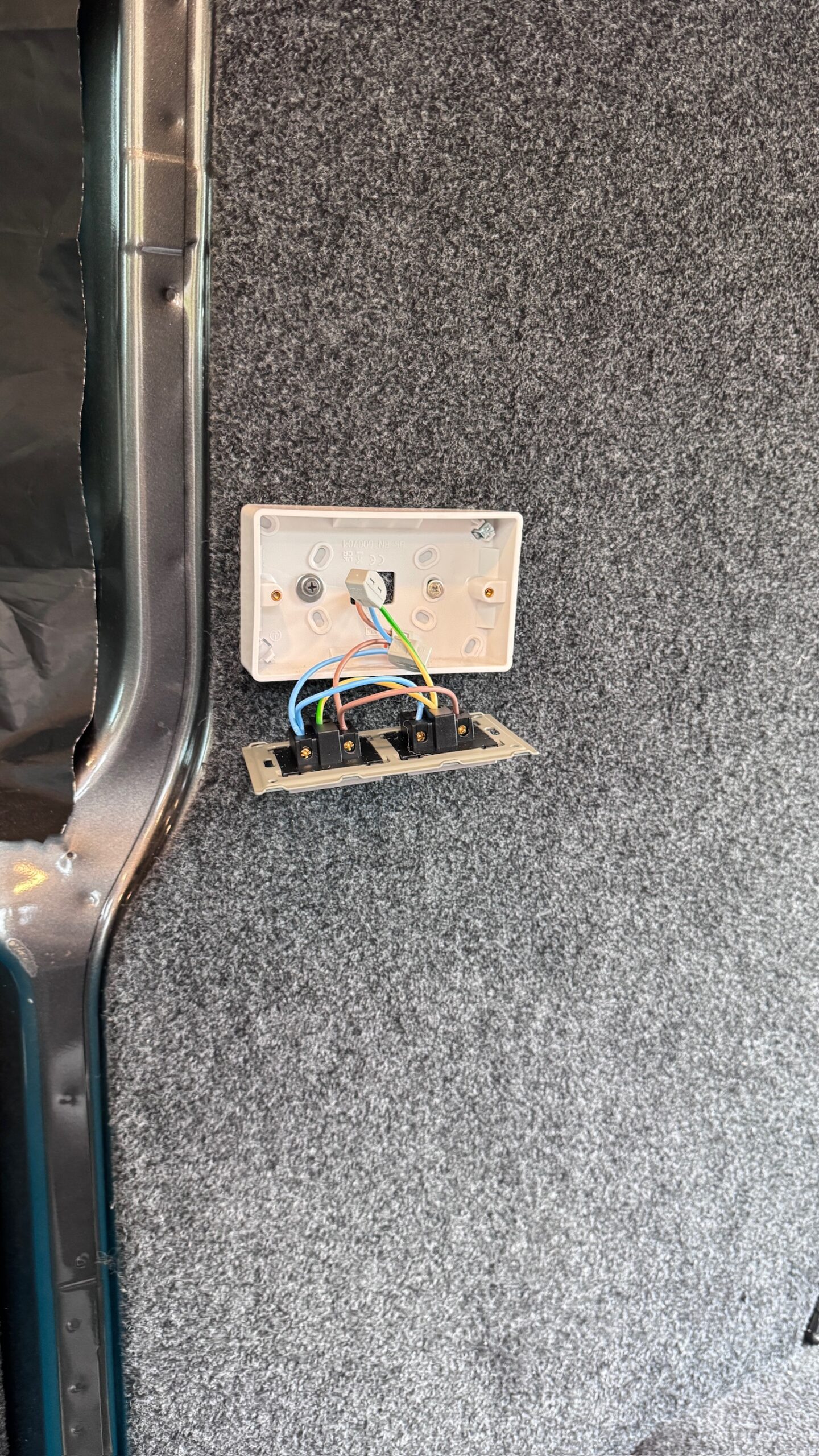

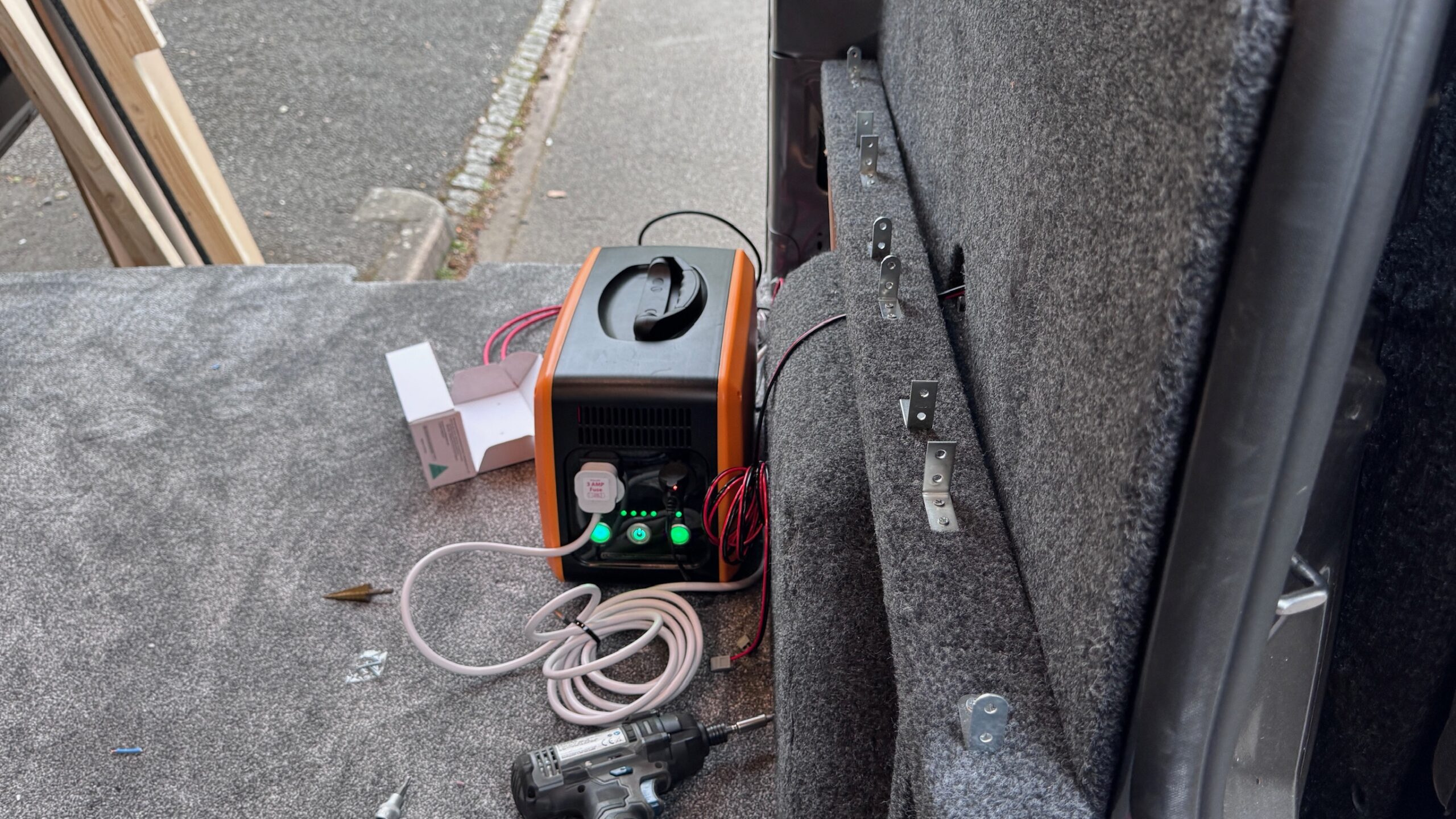

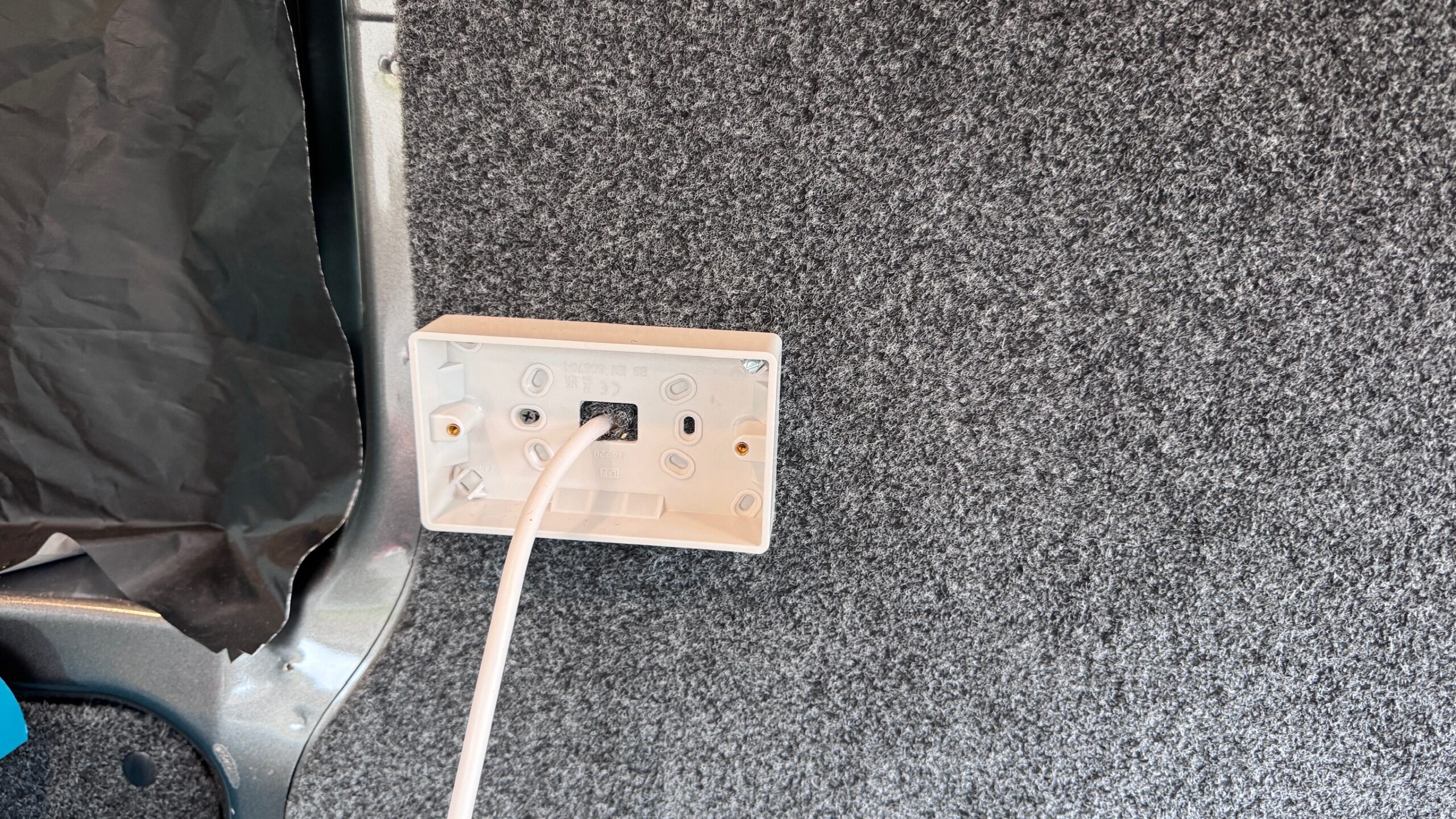

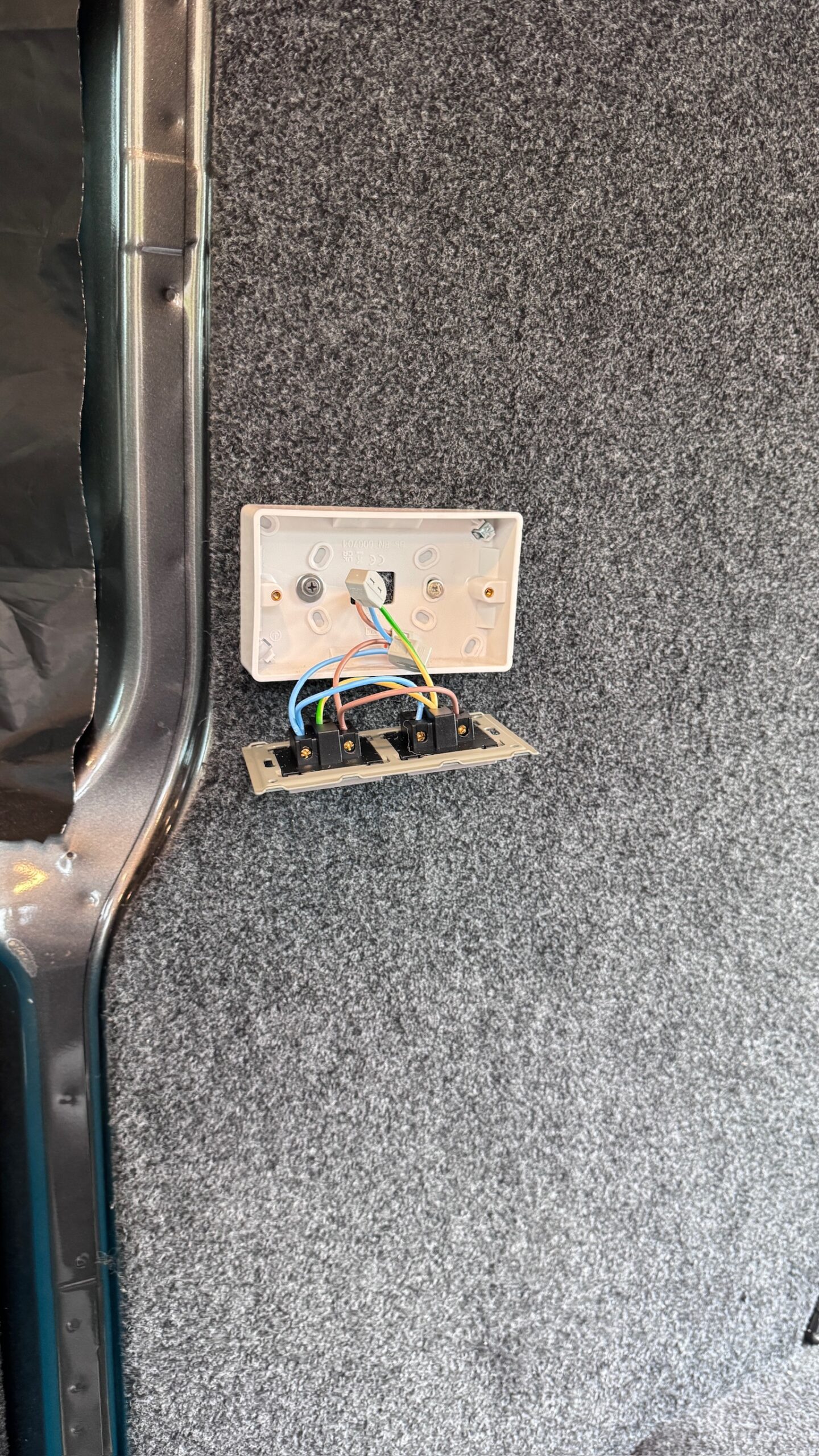

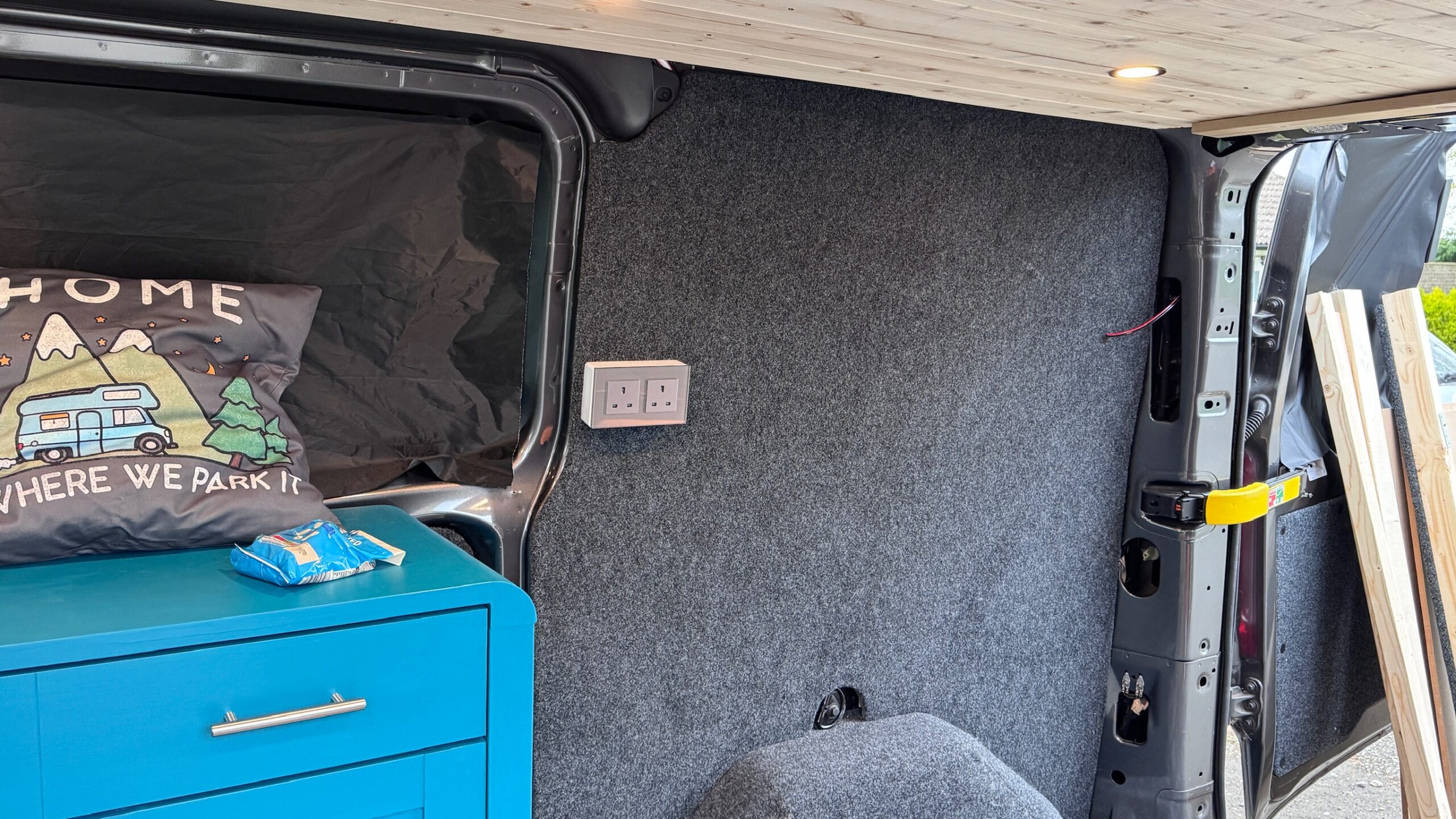

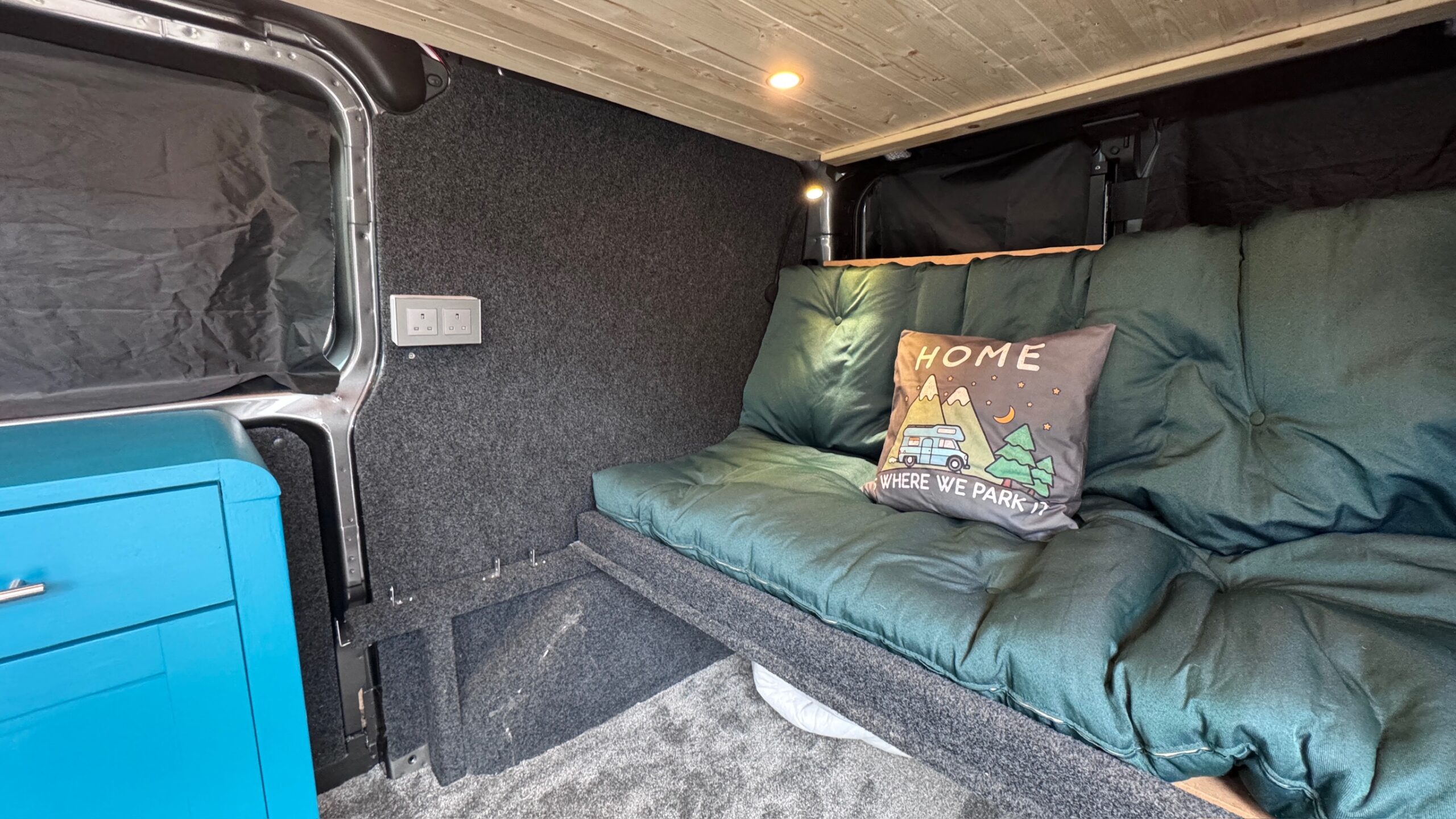

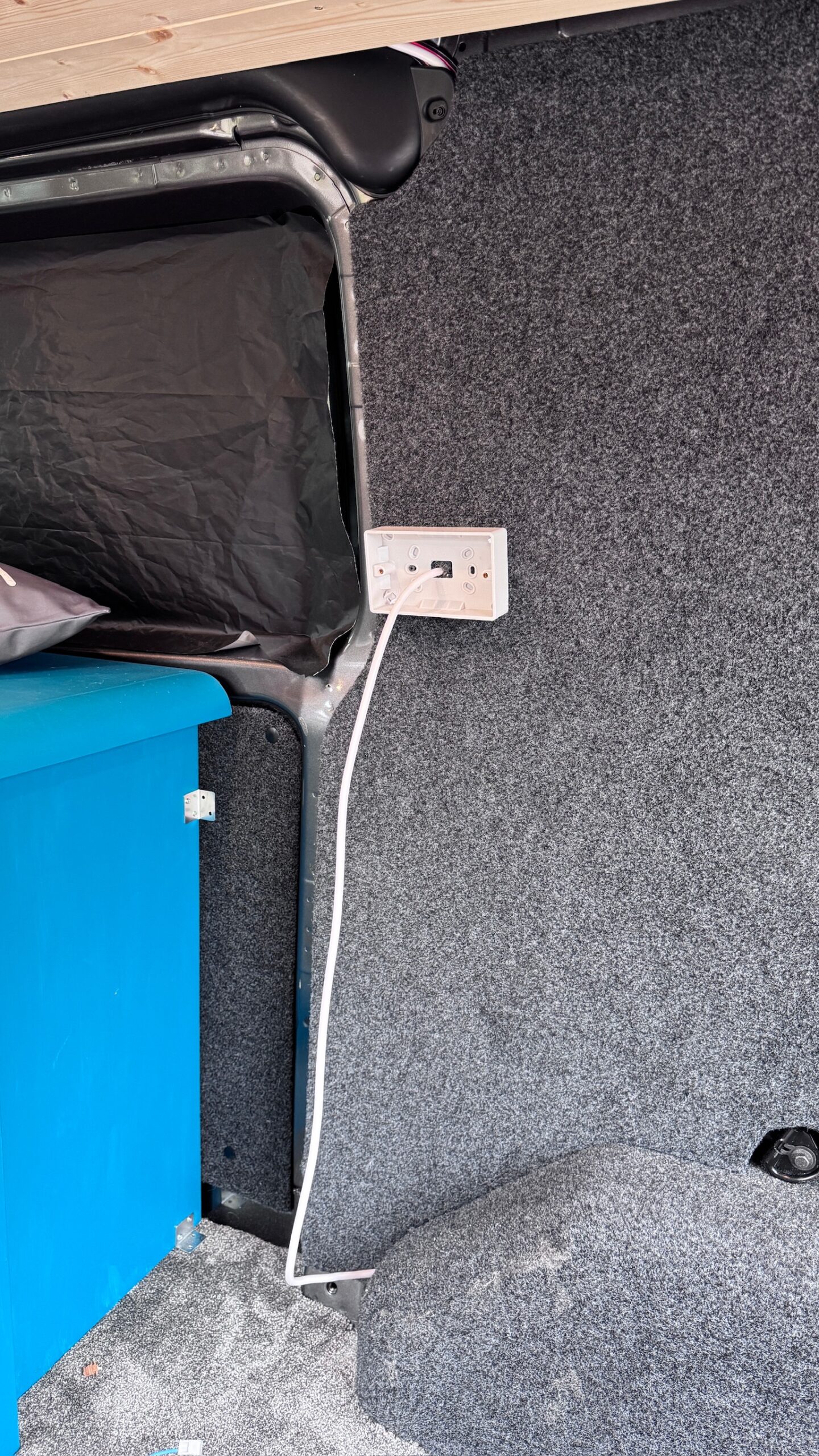

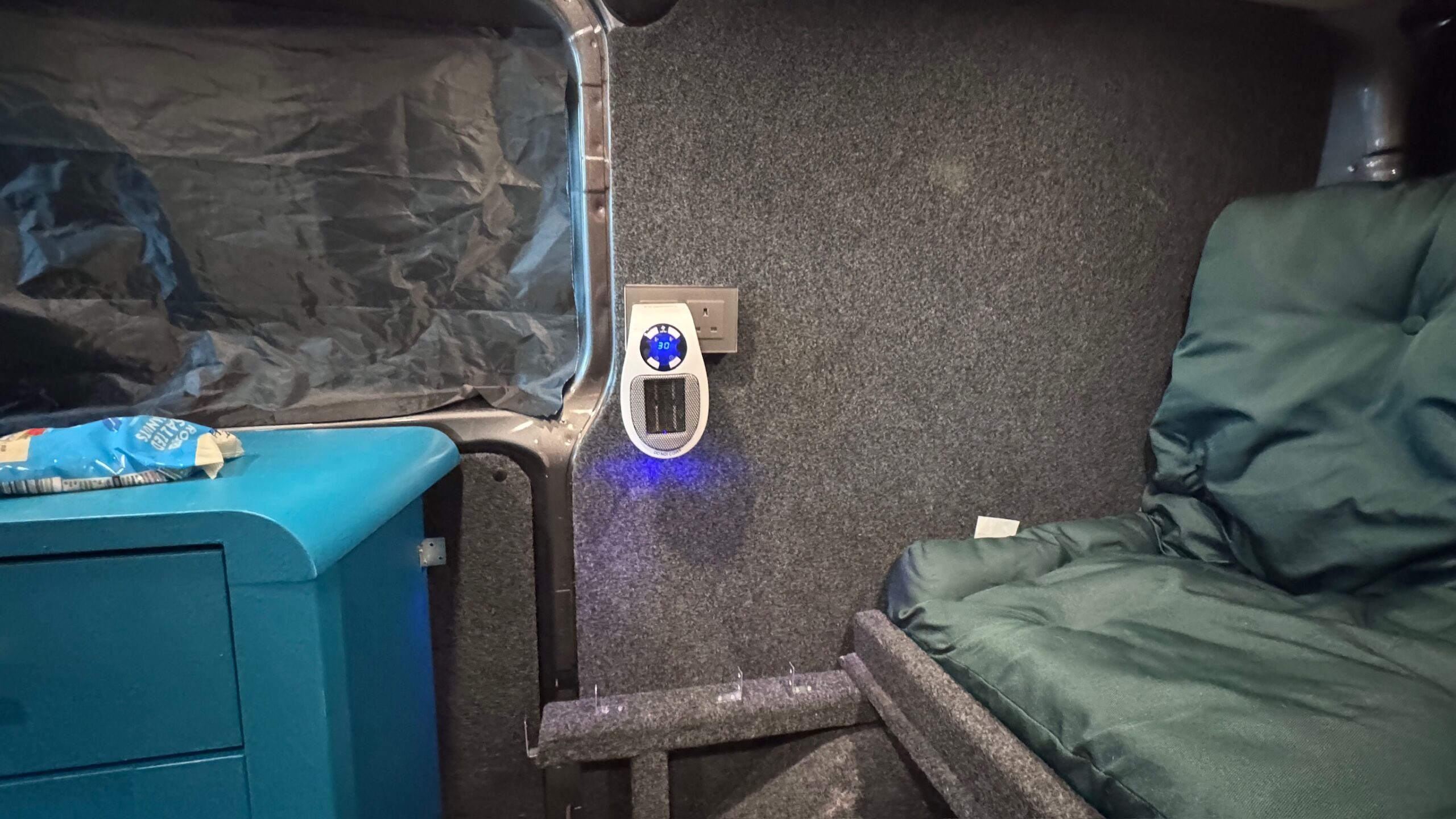

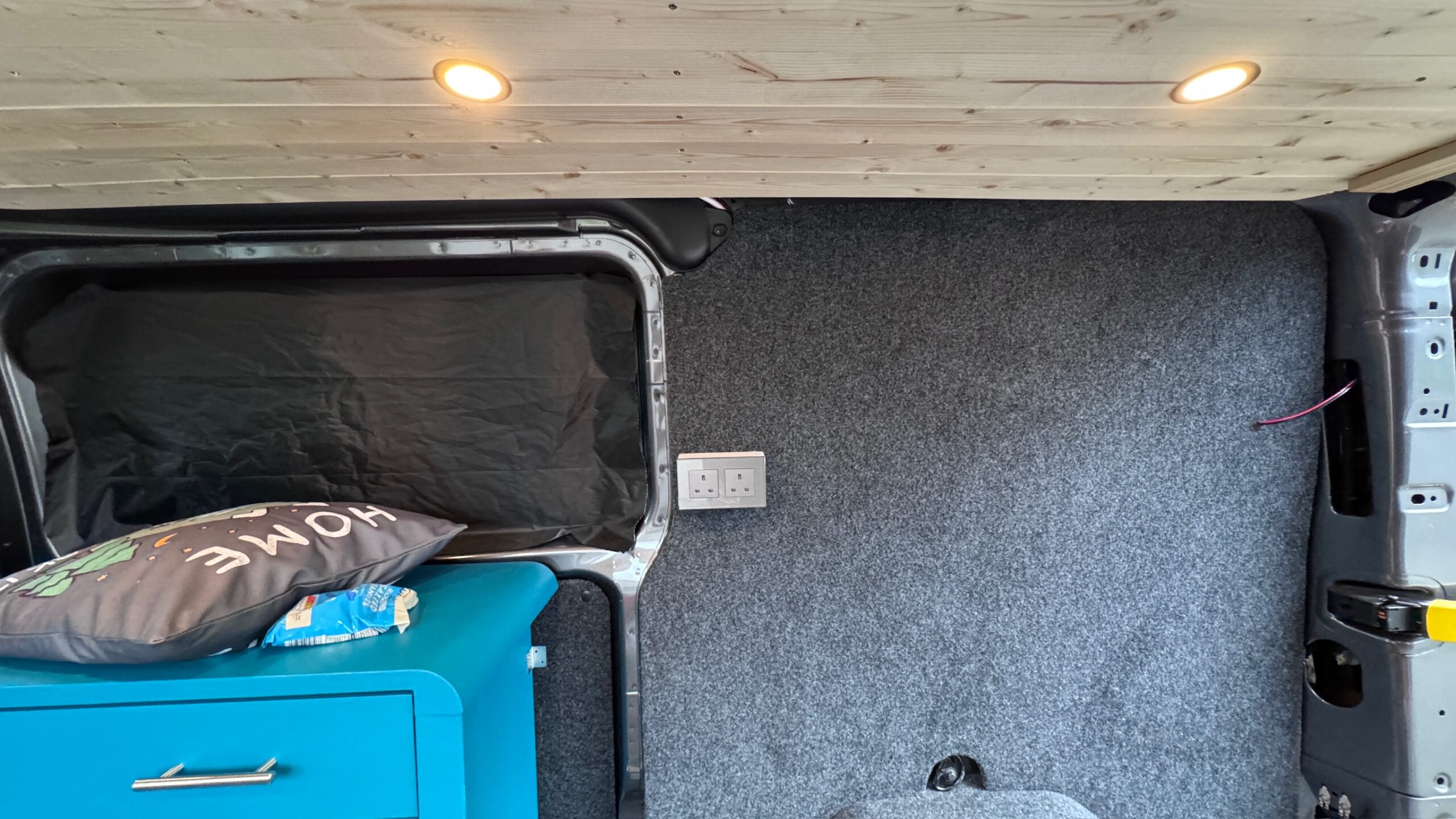

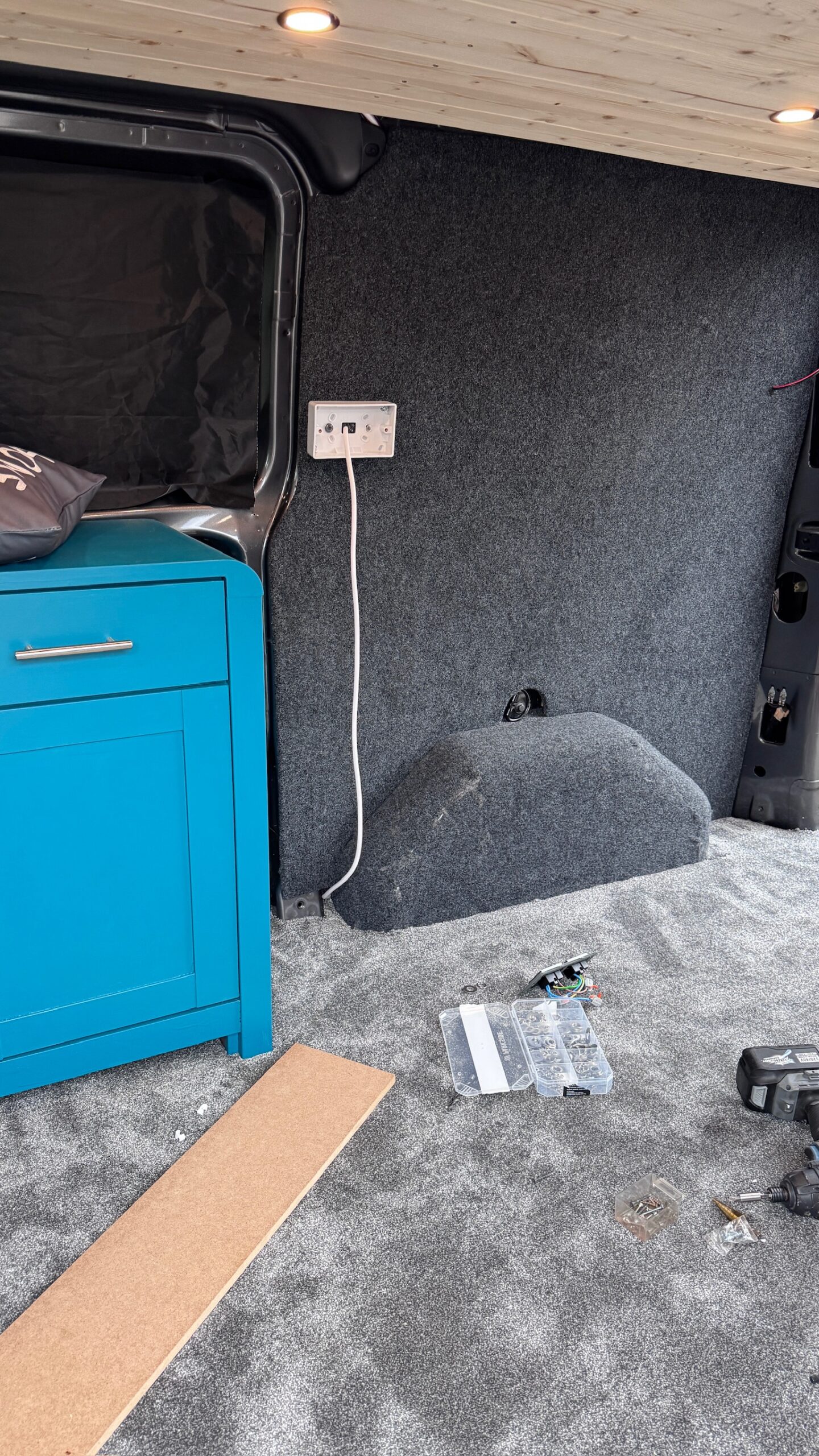

Mains sockets were from caravan supplies and initially connected to a 1kw lithium power generator, but will be connected to a 200ah lithium battery and inverter.
